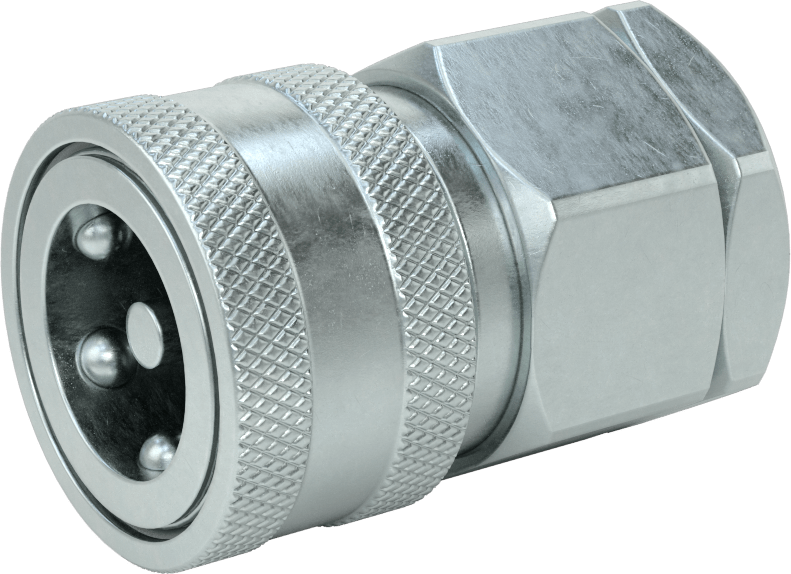

McMaster 5315K15 Zinc-Plated Steel Snap-Tite H-Shape Hose Coupling, Size 3/4, Sleeve-Lock Socket, 3/4 NPTF Female End
A complete coupling consists of a plug and a socket (both sold separately) that connect and disconnect quickly. Use them if you need frequent access to a hydraulic hose line. All Snap-Tite H-shape quick-disconnect plugs are compatible with any of the Snap-Tite H-shape quick-disconnect sockets of the same coupling size, regardless of the pipe size. Also known as double shut-off couplings, the plugs and sockets both have a shut-off valve that stops the flow when the coupling is separated. Sockets are sleeve-lock style: slide back the sleeve, insert the plug, and release the sleeve. Zinc-plated steel is stronger and more durable than other metals with fair corrosion resistance. NPTF (Dryseal) threads are compatible with NPT threads.
| For Use With | Hydraulic Fluid |
| Shape | Straight |
| Type | Adapter |
| Quick-Disconnect Component | Socket |
| Socket Locking Type | Sleeve Lock |
| Flow Control | With Shut-Off |
| Connection Style | Quick-Disconnect Female Γ Threaded Female |
| Quick-Disconnect Shape | Snap-Tite H-Shape |
| Coupling Size | 3/4 |
| Diameter | 15/16" |
| Pipe Size | 3/4 |
| Thread Type | NPTF |
| Dash Size | 12 |
| Material | Zinc-Plated Steel |
| Sleeve Material | Zinc-Plated Steel |
| Gasket Material | Buna-N Rubber |
| Maximum Pressure | 3,500 psi @ 72Β° F |
| Temperature Range | -40Β° to 200Β° F |
| Length | 2 27/64" |
| Specifications Met | MIL-C-51234 |
| Country of Origin | United States |
