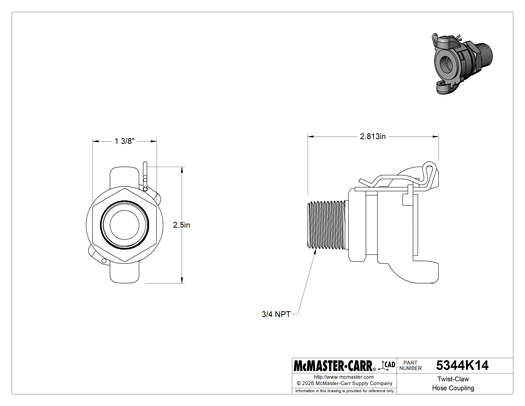

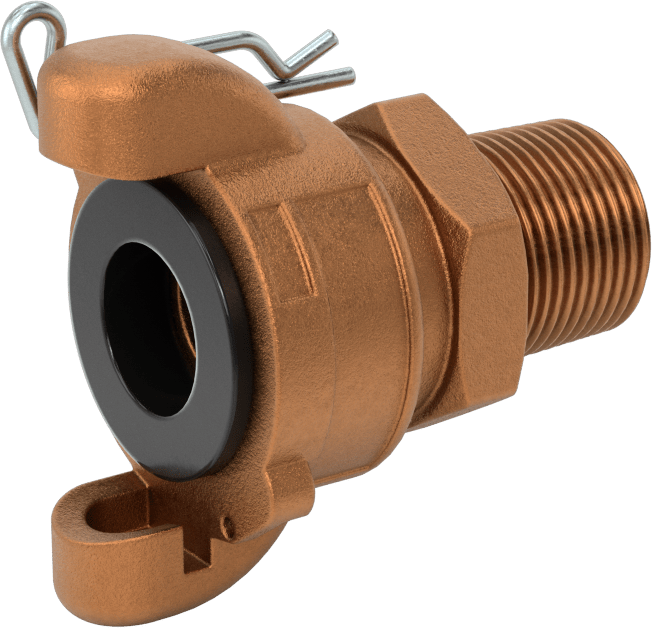

McMaster 5344K14 Twist-Claw Hose Coupling, Brass, 3/4 NPT Male End
Original price
$87.87
-
Original price
$87.87
Original price
$87.87
$87.87
-
$87.87
Current price
$87.87
The claw-style head mates with any Chicago twist-claw hose coupling, regardless of the pipe size or barbed hose ID. Also known as Chicago or universal couplings, they connect with a push and quarter turn. The included safety clip and lanyard prevent accidental disconnection.
| Shape | Straight |
| Fitting Type | Adapter |
| Material | Brass |
| Pipe Size | 3/4 |
| Maximum Pressure @ Temperature | 150 psi @ 72° F |
| Maximum Vacuum @ Temperature | Not Rated |
| Temperature | -20° F to 160° F |
| Includes | Safety Clip with Lanyard |
| Compatible With | Dixon Air King |
| Connects To | Hose × Pipe |
| Fitting Connection | Twist Claw × Threaded |
| Flow Control Type | Open |
| For Use With | Air, Water |
| Gasket Material | SBR |
| Gender | Male |
| Length | 2 13/16" |
| Performance | Corrosion Resistant |
| Pressure Rating | Low Pressure |
| Relative Vacuum Rating | Standard |
| System of Measurement | Inch |
| Thread Type | NPT |
| Country of Origin | China |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
| RoHS Exemptions | 6(c) |
| Schedule B Number | 741980.5500 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
| Related Products | Gaskets |
