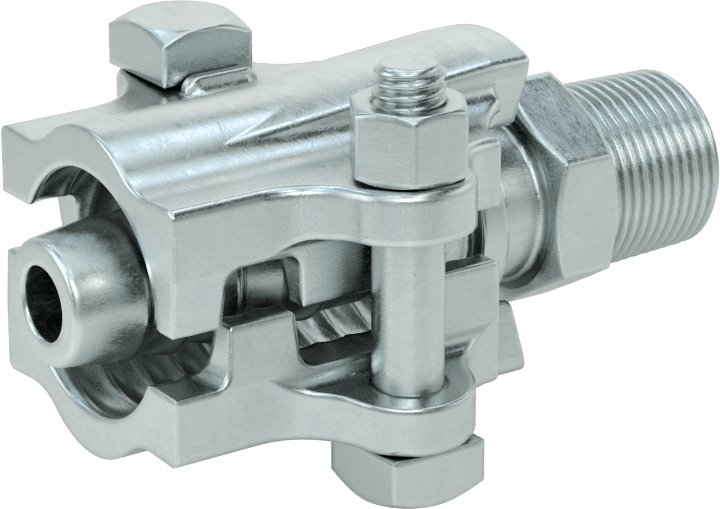

McMaster 5360K32 Interlocking-Clamp Hose Adapter for Steam, for 3/4" Hose ID, 1-1/2" Maximum Hose OD, 3/4 NPT Male
Original price
$89.35
-
Original price
$89.35
Original price
$89.35
$89.35
-
$89.35
Current price
$89.35
Also known as ground-joint couplings and boss couplings, these fittings are designed for high-pressure steam heating, humidification, and washdown applications. Insert the barbed end of the fitting into rubber hose, then position the interlocking clamp over the hose and bolt into place with a torque wrench. The clamp firmly grips the hose as it locks into the ring of the barbed end, creating a leak tight seal. The interlocking clamps are not reusable. Fittings are strong and durable with fair corrosion resistance.
Warning: There is no valve in these couplings. Stop the flow of steam before you disconnect the hose line.
| For Use With | Steam |
| Shape | Straight |
| Type | Adapter |
| Connection Style | Barbed Male × Threaded Male |
| Pipe Size | 3/4 |
| Thread Type | NPT |
| For Hose ID | 3/4" |
| Material | Zinc-Plated Steel |
| Maximum Pressure | 250 psi @ 72° F |
| Length | 4 3/32" |
| Country of Origin | United States |
| Schedule B | 732690.8695 |
