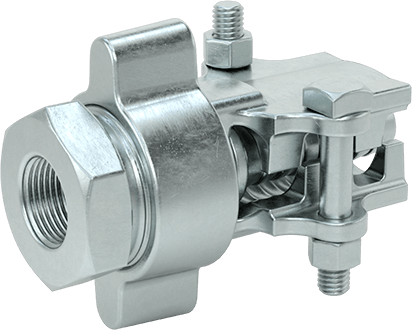

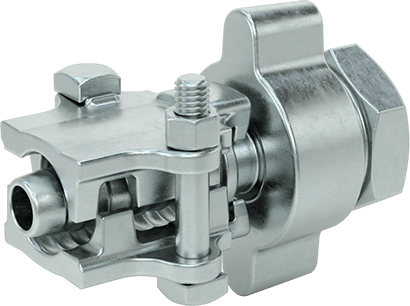

McMaster 5360K72 Interlocking-Clamp Hose Adapter for Steam for 3/4" Hose ID, 1-5/16" Maximum Hose OD, 3/4 NPT Female
Also known as ground-joint couplings and boss couplings, these fittings are designed for high-pressure steam heating, humidification, and washdown applications. Insert the barbed end of the fitting into rubber hose, then position the interlocking clamp over the hose and bolt into place with a torque wrench. The clamp firmly grips the hose as it locks into the ring of the barbed end, creating a leak tight seal. The interlocking clamps are not reusable. Fittings are strong and durable with fair corrosion resistance.

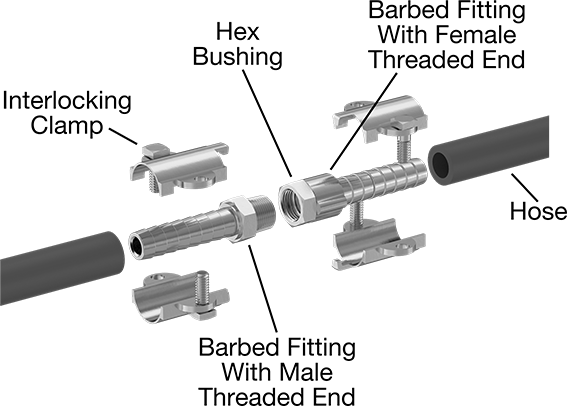

Fittings with a female threaded end have a hex bushing (also known as a female spud) that connects to a male interlocking-clamp hose fitting. Replace the hex bushing with a hex nipple (sold separately) to connect two female fittings; the hex nipples are also known as double spuds.
Warning: There is no valve in these couplings. Stop the flow of steam before you disconnect the hose line.
| For Use With | Steam |
| Shape | Straight |
| Type | Adapter |
| Connection Style | Barbed Male × Threaded Female |
| Barbed Male Connection Type | Interlocking Clamp |
| Barb Style | Standard |
| Number of Barbs | Multiple |
| For Hose ID | 3/4" |
| For Hose OD Range | 1 5/32" to 1 5/16" |
| Pipe Size | 3/4 |
| Thread Type | NPT |
| Material | Zinc-Plated Steel |
| Clamp Material | Zinc-Plated Steel |
| Wing Nut Material | Zinc-Plated Iron |
| Hex Bushing Material | Zinc-Plated Steel |
| Gasket Material | Polymer Plastic |
| Maximum Pressure | 250 psi @ 72° F |
| Maximum Vacuum | 28 in. of Hg @ 72° F |
| Vacuum Rating | Standard |
| Temperature Range | -20° to 450° F |

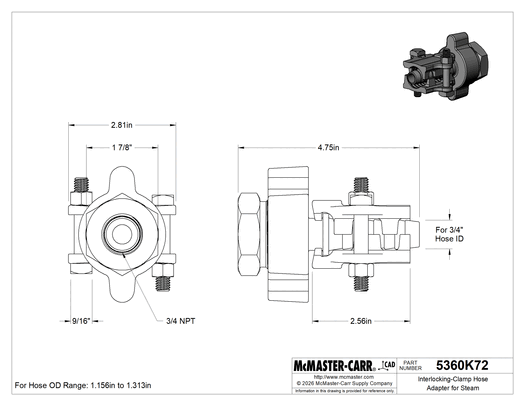

| Length | 4 3/4" |
| Compatible With | Dixon Boss, Dixon Ground Joint |
| For Hose Material | Rubber |
| Attachment Type | Interlocking Clamp |
| RoHS | RoHS 3 (2015/863/EU) compliant with exemption 6(a)-I - Lead as an alloying element in steel |
| REACH | Not Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | United States |
| USMCA Qualifying | No |
| Schedule B | 732690.8695 |
| ECCN | EAR99 |
