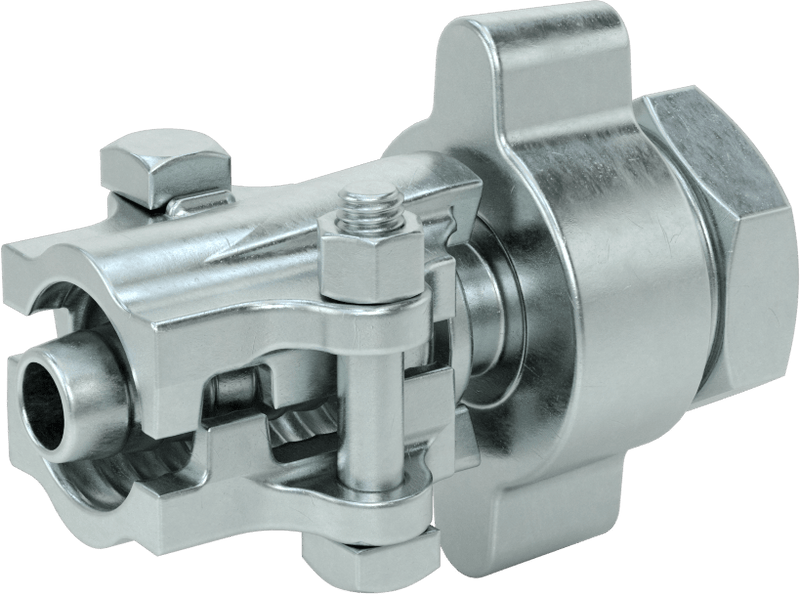

McMaster 5360K74 Interlocking-Clamp Hose Adapter for Steam, for 3/4" Hose ID, 1-1/2" Maximum Hose OD, 3/4 NPT Female

Original price $143.11 - Original price $143.11
Original price
$143.11
$143.11 - $143.11
Current price $143.11

Also known as ground-joint couplings and boss couplings, these fittings are designed for high-pressure steam heating, humidification, and washdown applications. Insert the barbed end of the fitting into rubber hose, then position the interlocking clamp over the hose and bolt into place with a torque wrench. The clamp firmly grips the hose as it locks into the ring of the barbed end, creating a leak tight seal. The interlocking clamps are not reusable. Fittings are strong and durable with fair corrosion resistance.

Fittings with a female threaded end have a hex bushing (also known as a female spud) that connects to a male interlocking-clamp hose fitting. Replace the hex bushing with a hex nipple (sold separately) to connect two female fittings; the hex nipples are also known as double spuds.

Warning: There is no valve in these couplings. Stop the flow of steam before you disconnect the hose line.

For Use With Steam
Shape Straight
Type Adapter
Connection Style Barbed Male Γ— Threaded Female
Barbed Male Connection
Type Interlocking Clamp
Barb Style Standard
Number of Barbs Multiple
For Hose ID 3/4"
For Hose OD Range 1 5/16" to 1 1/2"
Pipe Size 3/4
Thread Type NPT
Material Zinc-Plated Steel
Maximum Pressure 250 psi @ 72Β° F
Length 4 3/4"
Country of Origin United States
Schedule B 732690.8695
ECCN EAR99
