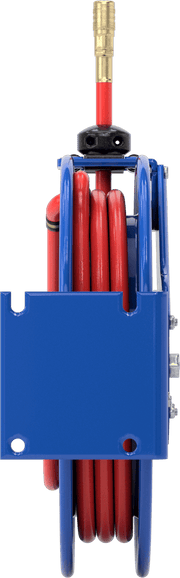

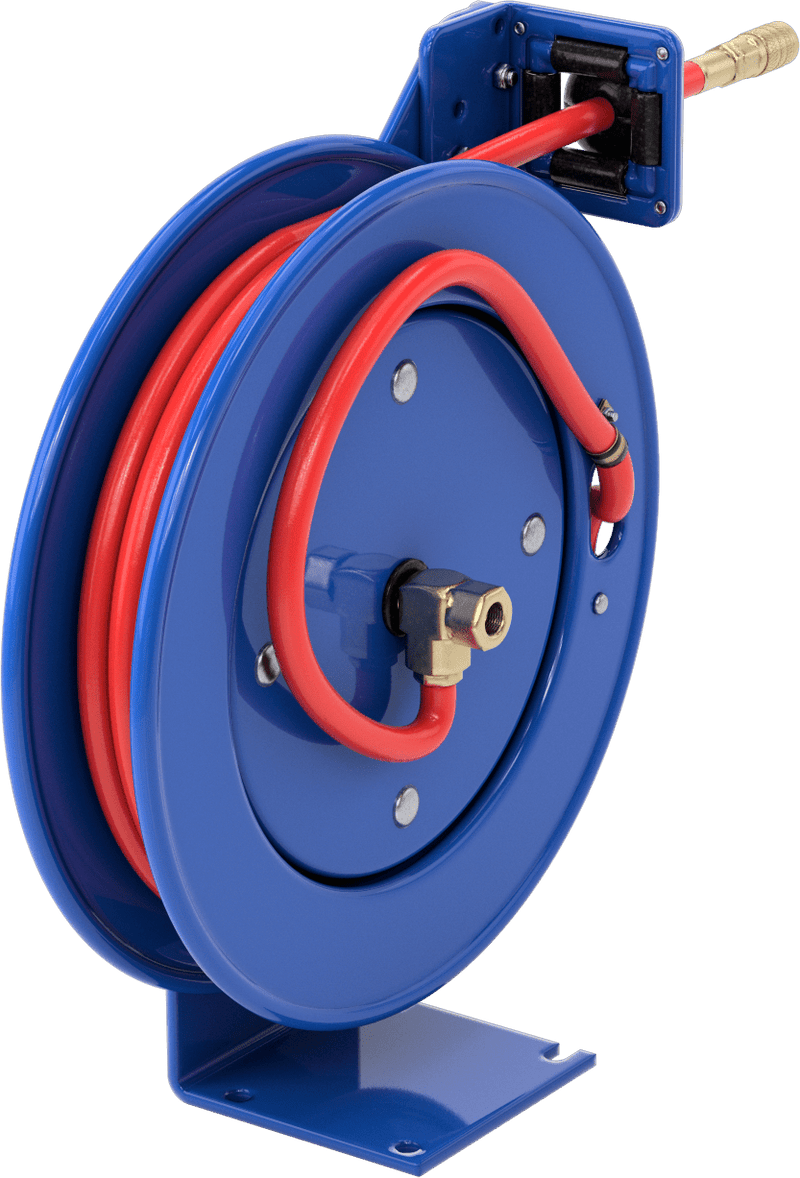

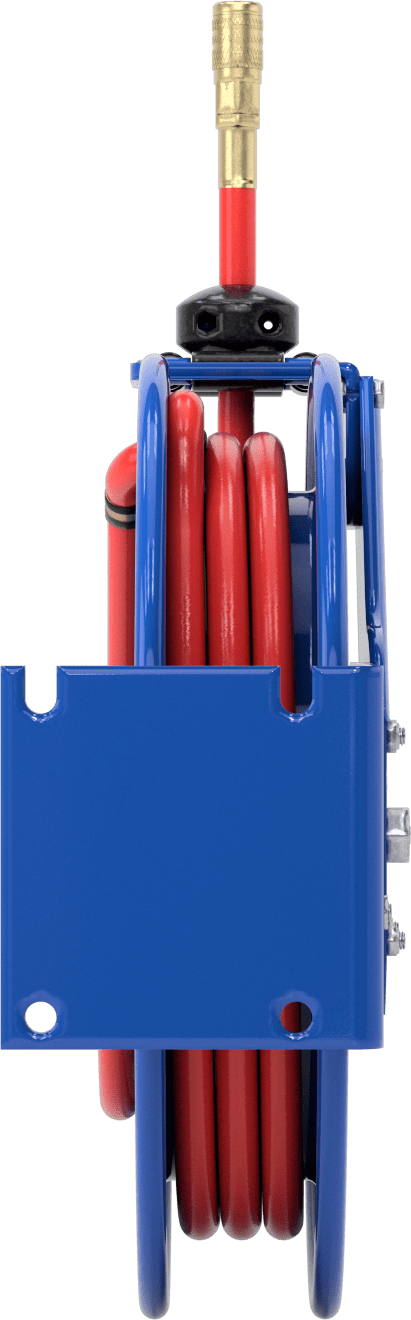

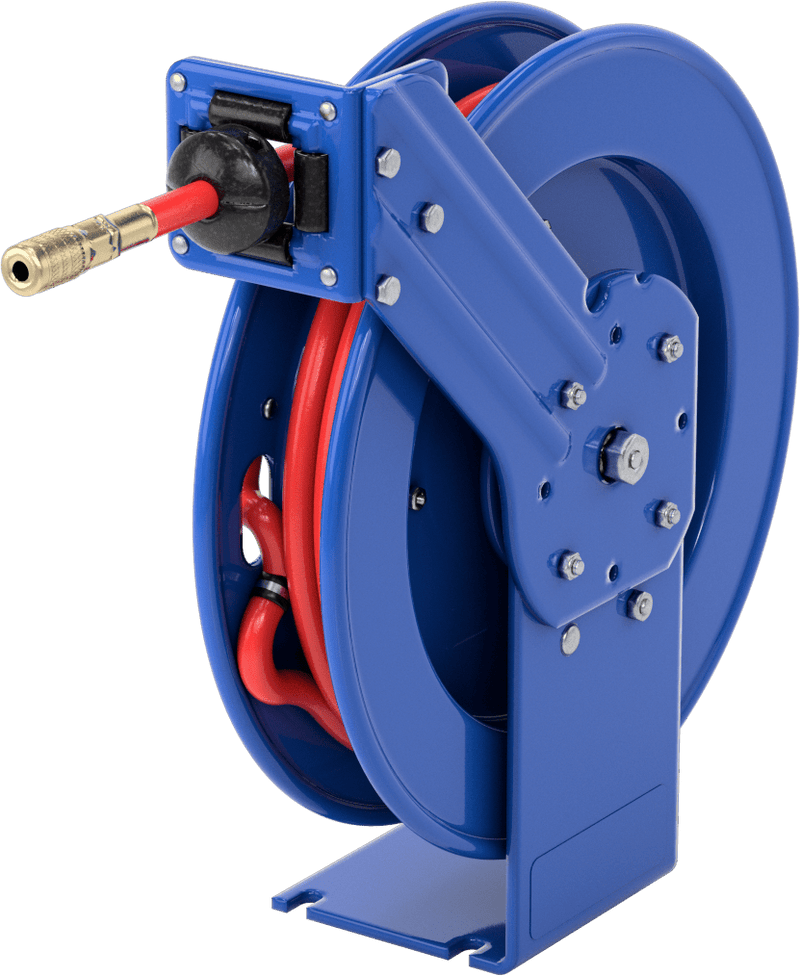

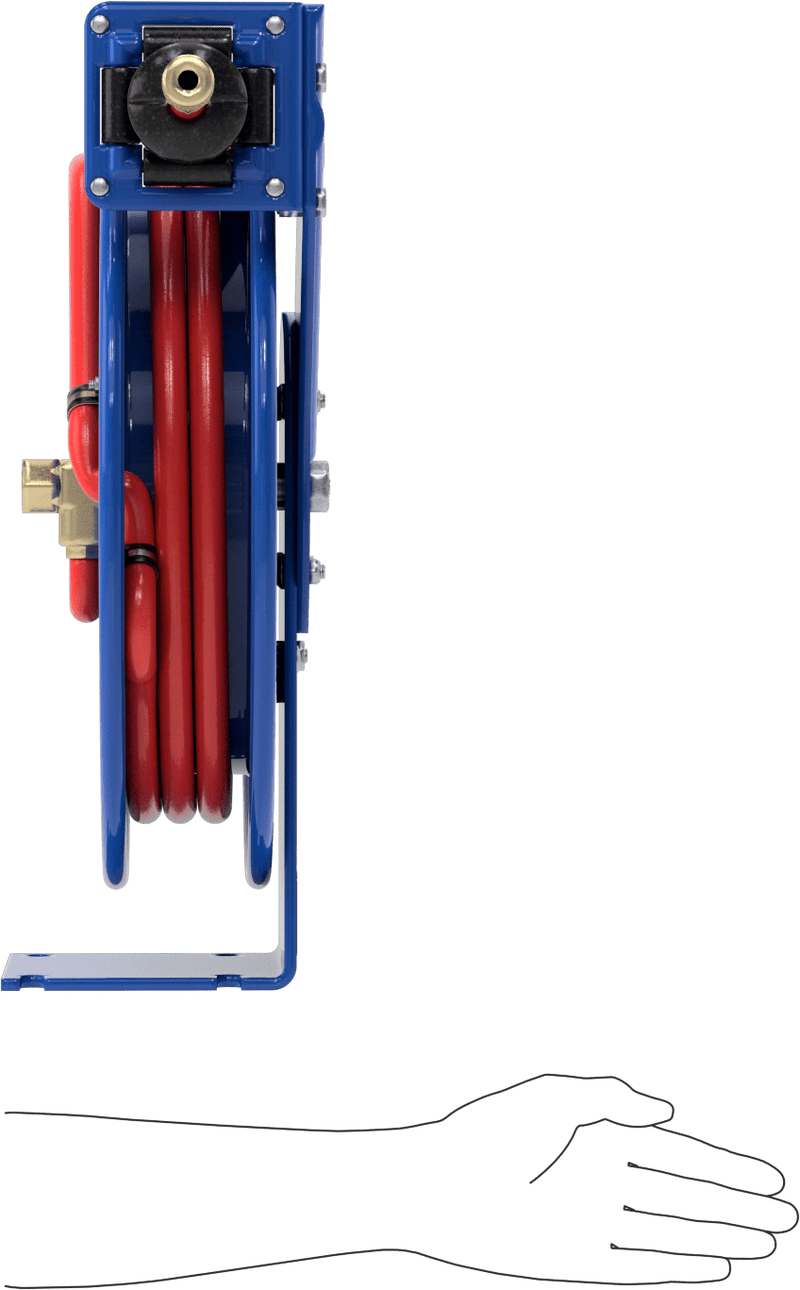

McMaster 5476K111 Air Hose Reel, Red, with Brass 1/4 Quick-Disconnect Socket x 3/8 NPT Fittings, 35 Feet Long
Original price
$907.24
-
Original price
$907.24
Original price
$907.24
$907.24
-
$907.24
Current price
$907.24
Hose is EPDM, which is the most common material for air applications. Pull the hose out of the reel and it locks in place; give it a quick tug and the hose retracts. Reels are best suited for applications where the hose is pulled straight out of the reel.
Additional mounting brackets (sold separately) allow reels to pivot or mount to a beam.
| For Use With | Air |
| Temperature | -40° F to 200° F |
| Connection | Outlet Hose x Inlet Pipe |
| Coupling Size | 1/4 |
| Pipe Size | 3/8 |
| Fittings | Brass Quick Disconnect Female Industrial Socket x Brass Threaded NPT Female |
| Threaded Female Fitting Seal Type | Buna-N Rubber Gasket |
| Hose ID | 3/8" |
| Hose OD | 11/16" |
| Hose Length | 35 ft. |
| Bend Radius | 4" |
| Maximum Pressure @ Temperature | 300 psi @ 72° F |
| Hose Color | Red |
| Clarity | Opaque |
| Hose Material | EPDM |
| Cover Material | EPDM |
| Interior Texture | Smooth |
| Reinforcement | Yarn |
| Mounting Location | Ceiling, Floor, Wall |
| Mounting Base Length | 6" |
| Mounting Base Width | 6" |
| Mounting Hole Diameter | 1/2" |
| Number of Mounting Holes | 4 |
| Fasteners Included | No |
| Reel Type | Open |
| Winding Method | Automatic |
| Reel Height | 18 3/4" |
| Reel Width | 6 3/4" |
| Reel Depth | 17 1/4" |
| Reel Material | Powder-Coated Steel |
| Reel Color | Blue |
| Hose Included | Yes |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 400932.0050 |
| USMCA Qualifying | Yes |
