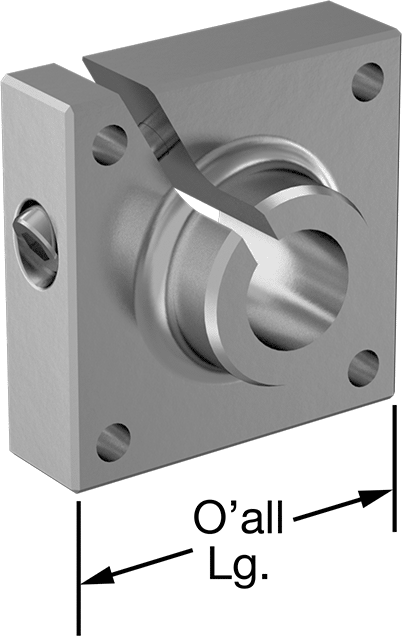

McMaster 57745K21 Flange-Mount Linear Shaft Support, for 1/2" Diameter Shafts, 6061 Aluminum
UPC: | Harmonization / Schedule B : 8487.90.0080
Country of Origin: United States | Shipping Weight: 0.04 lbs
Original price
$132.53
-
Original price
$132.53
Original price
$132.53
$132.53
-
$132.53
Current price
$132.53
These shaft supports hold linear shafts perpendicular to the mounting surface. They’re made of aluminum, which is lightweight and resists corrosion. Use them with light to medium loads where shaft alignment is not critical. Loosen the clamping screw to install, then tighten to secure.
Machined — Machined supports have flat, square surfaces, so they can be used to align other supports and parts in your system.

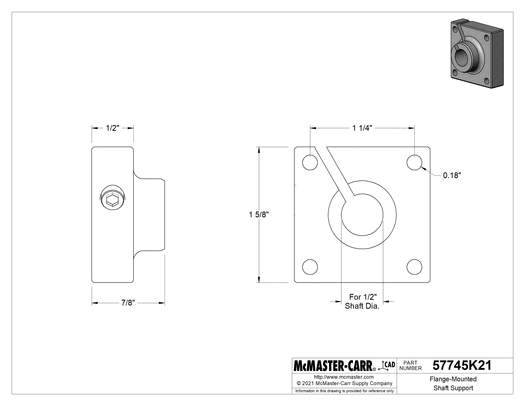

| Material | 6061 Aluminum |
| For Shaft Diameter | 1/2" |
| Length | 1 5/8" |
| Width | 7/8" |
| Height | 1 5/8" |
| Flange Thickness | 1/2" |
| Number of | 4 |
| Center-to-Center | 1 1/4" |
| Diameter | 0.18" |
| Clamping Screw Thread Size | 8-32 |
| Fabrication | Machined |
| Construction | One Piece |
| Support Mounting Location | Flange |
| System of Measurement | Inch |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
| RoHS Exemptions | 6(b)-II |
| Schedule B Number | 848790.0080 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
