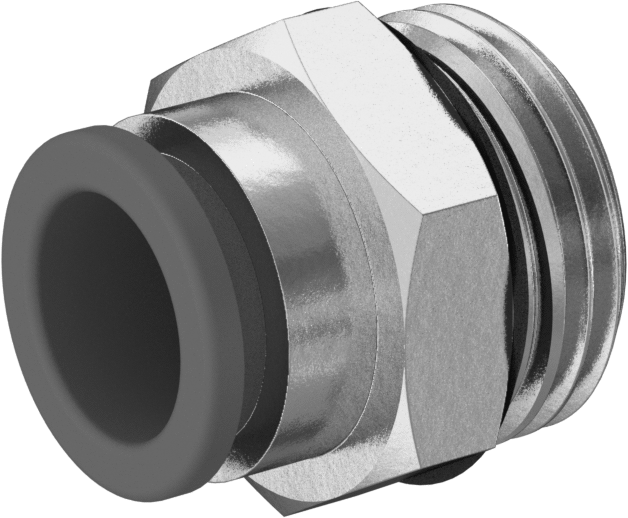

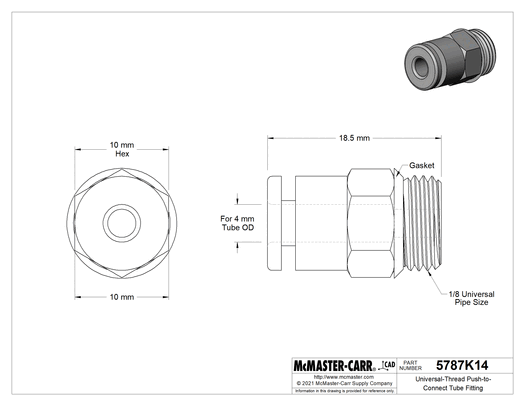

McMaster 5787K14 Push-to-Connect Tube Fitting for Air and Water, Static Dissipative, Straight Adapter, 4 mm Tube OD × 1/8 Male Universal Thread
Original price
$43.53
-
Original price
$43.53
Original price
$43.53
$43.53
-
$43.53
Current price
$43.53

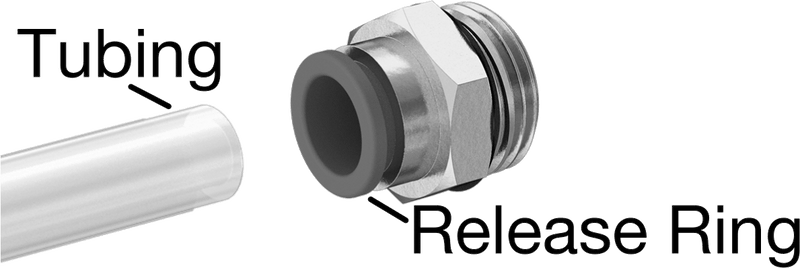

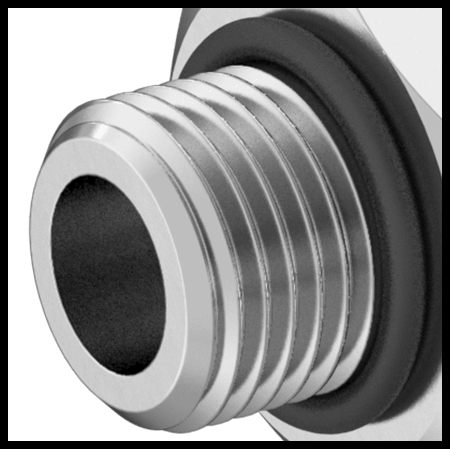

The threads on these fittings mate with NPT, NPTF (Dryseal), BSPT, and BSPP threads. The male threads have a gasket to protect against leaks. Fittings are moisture and corrosion resistant, so they're good for water and humid air applications. Also known as instant fittings, they connect to tubing with a push, and an internal gripping ring and O-ring hold the tubing tight. To disconnect, push on the release ring and pull the tubing out of the fitting.
Static dissipative fittings divert static electricity.
| Shape | Straight |
| Type | Adapter |
| For Use With | Air |
| Tube Connection Style | Push to Connect |
| Push-to-Connect Type | Standard |
| Tube Connection Gender | Female |
| O-Ring Material | Buna-N Rubber |
| For Tube OD | 4 mm |
| Pipe Connection Style | Threaded |
| Pipe Connection Gender | Male |
| Thread Type | Universal, NPT, NPTF, BSPP, BSPT |
| Pipe Size | 1/8 |
| Tube Connection Material | Brass |
| Pipe Connection Material | Nickel-Plated Brass |
| Gasket Material | 304 Stainless Steel, Buna-N Rubber |
| Release Type | Ring |
| Release Ring Material | Plastic |
| Release Ring Color | Black |
| Maximum Pressure | 140 psi @ 72° F |
| Maximum Vacuum | 29 in. of Hg @ 72° F |
| Vacuum Rating | Standard |
| Temperature Range | 32° to 100° F |
| Electrical Properties | Static Dissipative |
| Surface Resistivity | 10^6 ohms/sq. |
| For Tube Material | Nylon Plastic, Polyurethane Rubber |
| For Tube Hardness Rating | Firm |
| For Tube Hardness | Durometer 90A-95A |
| RoHS | RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy |
| REACH | Not Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | Japan |
| Schedule B | 7412.20.0000 |
| ECCN | EAR99 |
