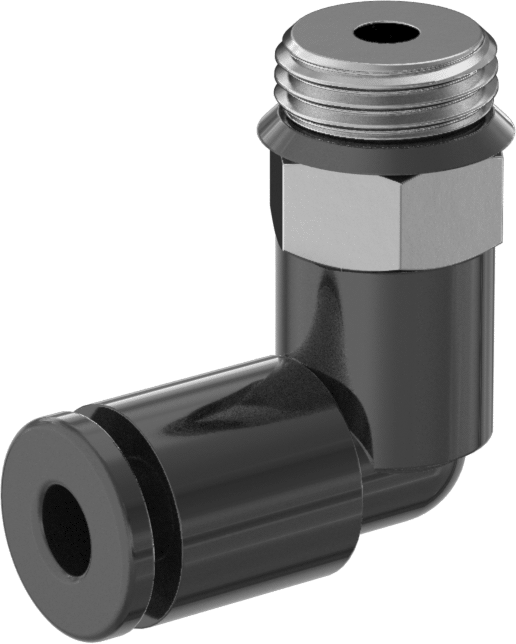

McMaster 5787K38 Push-to-Connect Tube Fitting for Air and Water, Elbow, for 4 mm Tube OD × 1/8 Male Universal Thread
Original price
$46.27
-
Original price
$46.27
Original price
$46.27
$46.27
-
$46.27
Current price
$46.27

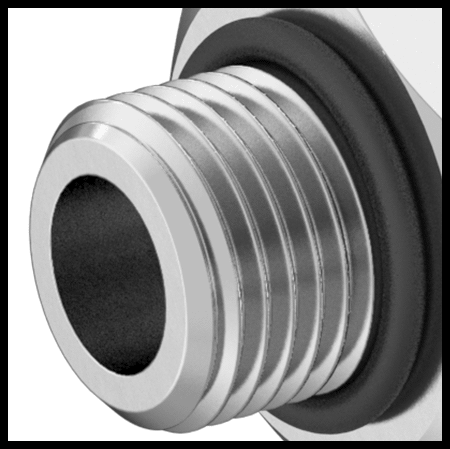

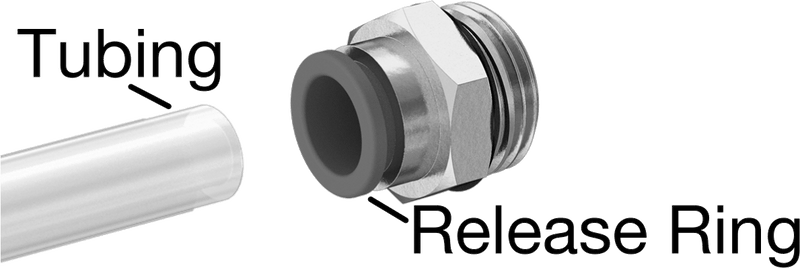

The threads on these fittings mate with NPT, NPTF (Dryseal), BSPT, and BSPP threads. The male threads have a gasket to protect against leaks. Fittings are moisture and corrosion resistant, so they're good for water and humid air applications. Also known as instant fittings, they connect to tubing with a push, and an internal gripping ring and O-ring hold the tubing tight. To disconnect, push on the release ring and pull the tubing out of the fitting.
Static dissipative fittings divert static electricity.
Fittings with intermittent swivel rotate 360° before and after installation as needed to allow movement in the system and to prevent kinking.
| Shape | 90° Elbow |
| Type | Adapter |
| For Use With | Air |
| Tube Connection Style | Push to Connect |
| Push-to-Connect Type | Standard |
| Tube Connection Gender | Female |
| O-Ring Material | Buna-N Rubber |
| For Tube OD | 4 mm |
| Pipe Connection Style | Threaded |
| Pipe Connection Gender | Male |
| Thread Type | Universal, NPT, NPTF, BSPP, BSPT |
| Pipe Size | 1/8 |
| Tube Connection Material | Polybutylene Plastic |
| Pipe Connection Material | Nickel-Plated Brass |
| Gasket Material | 304 Stainless Steel, Buna-N Rubber |
| Color | Black |
| Clarity | Opaque |
| Release Type | Ring |
| Release Ring Material | Plastic |
| Release Ring Color | Black |
| Maximum Pressure | 140 psi @ 72° F |
| Maximum Vacuum | 29 in. of Hg @ 72° F |
| Vacuum Rating | Standard |
| Temperature Range | 32° to 100° F |
| Electrical Properties | Static Dissipative |
| Surface Resistivity | 10^6 ohms/sq. |
| For Tube Material | Nylon Plastic, Polyurethane Rubber |
| For Tube Hardness Rating | Firm |
| For Tube Hardness | Durometer 90A-95A |
| Swivel Type | Intermittent |
| RoHS | RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy |
| REACH | Not Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | Japan |
| Schedule B | 3917.40.0000 |
| ECCN | EAR99 |
