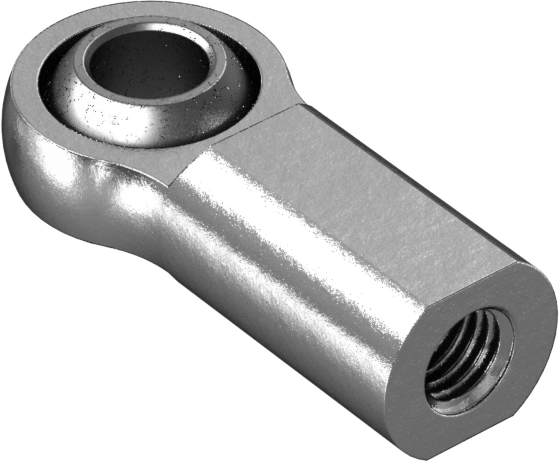

McMaster 59935K515 Ball Joint Rod End, M12 × 1.75 mm Internal Thread, Left-Hand Shank
Original price
$93.56
-
Original price
$93.56
Original price
$93.56
$93.56
-
$93.56
Current price
$93.56
Ball joint rod end with left-hand internal threaded shank for connecting rods and linkages where right-hand threads could loosen.
| Rod End Type | Ball Joint |
| Shank Thread Size | M12 × 1.75 mm |
| Center Length | 50 mm |
| Thread Length | 24 mm |
| ID | 12 mm |
| ID Tolerance | -0.013 mm to 0.065 mm |
| Maximum Ball Swivel | 27° |
| Overall Width | 30 mm |
| Overall Thickness | 16 mm |
| Static Radial Load Capacity | 5,800 lb. |
| Material | Zinc-Plated Carbon Steel |
| Shank Thread Direction | Left Hand |
| Ball Material | Alloy Steel |
| Lubrication | Required |
| Relubrication | Required |
| Shank Gender | Female |
| Shank Threading | Fully Threaded |
| System of Measurement | Metric |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
