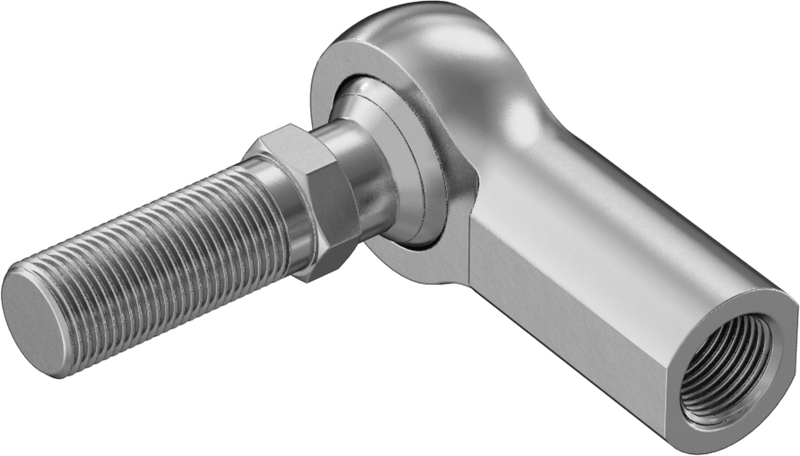

McMaster 60745K881 Ball Joint Linkage with PTFE Liner, Zinc-Plated Alloy Steel, Right-Hand 3/4"-16 Female Shank and Stud
Original price
$171.45
-
Original price
$171.45
Original price
$171.45
$171.45
-
$171.45
Current price
$171.45
A slippery PTFE liner reduces wear and eliminates the need for lubrication. Linkages consist of ball joint rod ends with a ball stud attached to simplify mounting. The stud is machined to fit perfectly inside its housing and swivel in all directions—good for clutches, throttles, and shift control rods. Maximum ball swivel is approximate.
| Rod End Type | Ball Joint Linkage |
| Shank Thread Direction | Right Hand |
| Ball Stud Thread Direction | Right Hand |
| Shank Thread Size | 3/4"-16 |
| Shank Center Length | 2 7/8" |
| Shank Thread Length | 1 3/4" |
| Ball Stud Thread Size | 3/4"-16 |
| Ball Stud Center Length | 3" |
| Ball Stud Length | 1 13/16" |
| Maximum Ball Swivel | 50° |
| Static Radial Load Capacity | Not Rated |
| Temperature Range | -65° F to 325° F |
| Material | Zinc-Plated Alloy Steel |
| Lubrication | Not Required |
| Ball Stud Material | Chrome-Plated Bearing Steel |
| Insert Material | Alloy Steel |
| Liner Material | PTFE |
| Shank Gender | Female |
| Shank Threading | Fully Threaded |
| System of Measurement | Inch |
| Pack Size | 1 |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| Schedule B Number | 848330.8055 |
| USMCA Qualifying | Yes |
