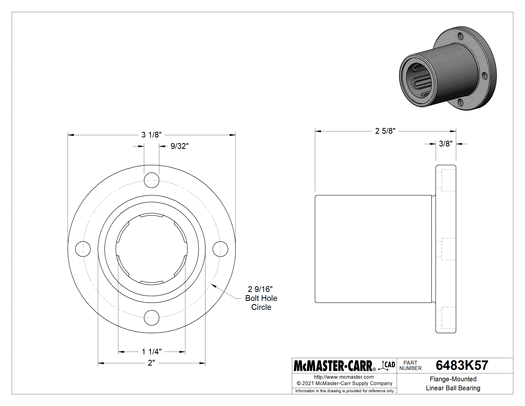

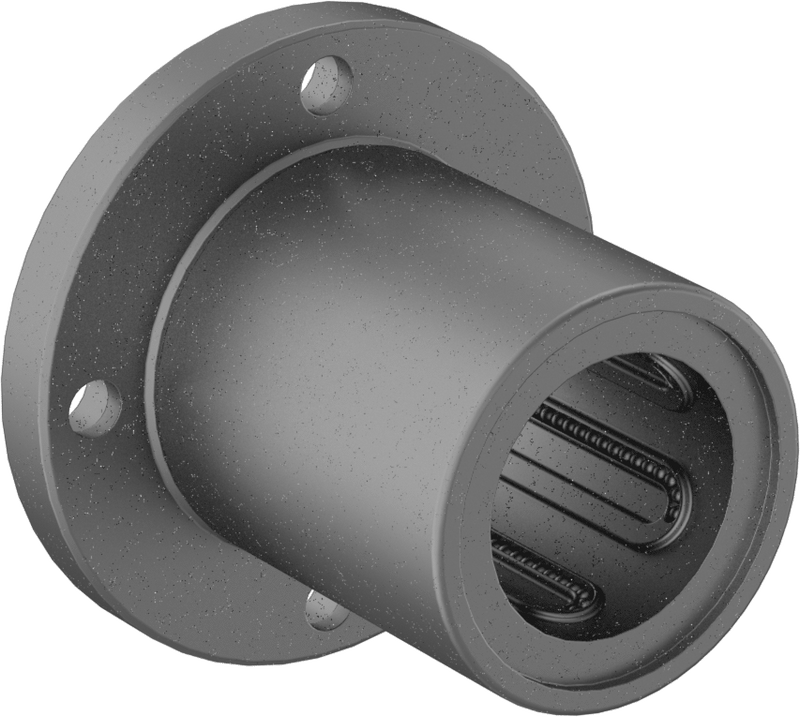

McMaster 6483K57 Flange-Mounted Ball Linear Bearing, Round Housing, for 1-1/4" Shaft, Fixed Alignment, COO Japan
Original price
$222.18
-
Original price
$222.18
Original price
$222.18
$222.18
-
$222.18
Current price
$222.18
The flanged housing makes these bearings a good solution for vertical linear motion applications. All are for use with round end-supported shafts and have a fixed-alignment design for use where shaft misalignment is unlikely. End seals keep lubricant in and dirt out.
| Alignment Style | Fixed |
| Bearing Material | Steel |
| Housing Material | Steel |
| Ball Material | Steel |
| Flange Shape | Round |
| For Shaft Diameter | 1 1/4" |
| Length | 2 5/8" |
| Width | 3 1/8" |
| Height | 3 1/8" |
| Flange Thickness | 3/8" |
| Flange OD | 3 1/8" |
| Bolt Circle Diameter | 2 9/16" |
| Housing OD | 2" |
| Dynamic Load Capacity | 350 lb. |
| Static Load Capacity | 615 lb. |
| Temperature Range | -4° F to 176° F |
| For Shaft Material | Stainless Steel, Steel |
| Mounting Holes | 4, 9/32" Diameter |
| Bearing Type | Ball |
| Housing Type | Flange Mount |
| ID | 1.250" |
| Lubrication | Required |
| With End Seals | Yes |
| Country of Origin | Japan |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 8483.20.0010 |
| USMCA Qualifying | No |
