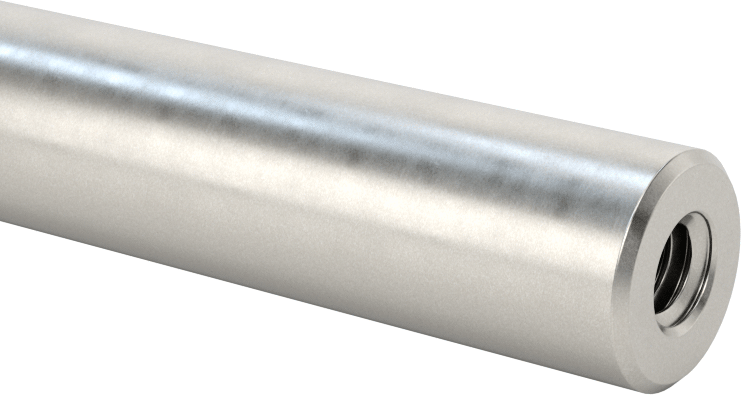

McMaster 6649K529 Tapped Linear Motion Shaft, Tapped x Straight End, 1050 Carbon Steel, 1/2" Diameter, 6" Long
UPC: | Harmonization / Schedule B : 8482.99.1010
Country of Origin: United States | Shipping Weight: 1.05 lbs
Original price
$91.96
-
Original price
$91.96
Original price
$91.96
$91.96
-
$91.96
Current price
$91.96
Mount directly with studs, bolts, and other threaded fasteners—no shaft supports needed. Pair with linear bearings to create smooth, precise motion. These shafts are turned, ground, and polished to tight tolerances and hardened to resist wear.
Steel — Stronger than aluminum and stainless steel. These shafts are best for dry environments since moisture will cause them to rust.
Surface Smoothness — The lower the microinch value, the smoother the finish and the less friction it will cause on the bearing.
| End Type | Plain, Tapped |
| Material | Steel |

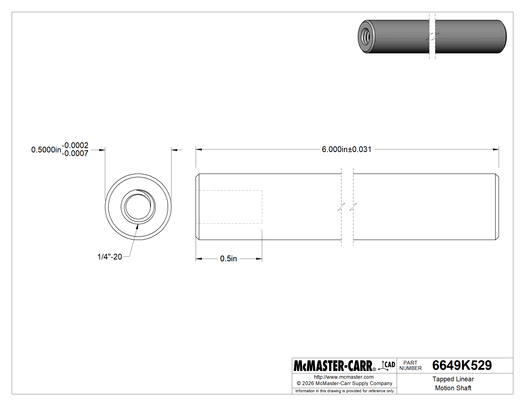

| Diameter | 1/2" |
| Diameter Tolerance | -0.0007" to -0.0002" |
| Length | 6" |
| Length Tolerance | -0.031" to 0.031" |
| Thread Size | 1/4"-20 |
| Thread Length | 1/2" |
| Hardness | Rockwell C60 |
| Hardness Rating | Extra Hard |
| Surface Smoothness | 16 μin |
| Edge Type | Chamfered |
| For Motion | Linear |
| Heat Treatment | Case Hardened |
| Mechanical Finish | Polished, Precision Ground, Turned |
| Performance | Highly Wear Resistant, Low Friction |
| Shaft Type | Round |
| Steel Grade | 1050 Carbon Steel |
| Straightness Tolerance | 0.002"/1 ft. |
| System of Measurement | Inch |
| Tolerance Rating | Standard |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | 1C999 |
| REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 848299.1010 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
