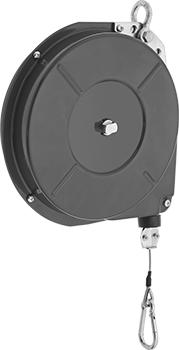

McMaster 6652A22 Automatic-Return Hanging Retractor with Cable Lock, 1 to 15 lb. Capacity
Original price
$632.85
-
Original price
$632.85
Original price
$632.85
$632.85
-
$632.85
Current price
$632.85
Hang a tool or object overhead, pulling it down when you need it. Let go and the cable pulls it back up. Choose a load capacity that is sufficient for the total load you'll place on the retractor. This includes the tool plus any fittings, hose, or power cords.
Cable lock allows you to lock the cable at set positions to avoid accidental adjustments. Tug on the cable to release the lock.
|
Mount Type
|
Hanging |
|
Reel Type
|
Enclosed |
|
Retraction Method
|
Automatic |
|
Capacity, lbs.
|
|
|
Min.
|
1 |
|
Maximum
|
15 |
|
Cable
|
|
|
Travel
|
15 ft. |
|
Diameter
|
1/16" |
|
Material
|
Steel |
|
Tension Adjustability
|
Adjustable |
|
With Lock
|
Yes |
|
Hanger
|
|
|
Type
|
Fixed Ring |
|
Opening Size
|
3/4" |
|

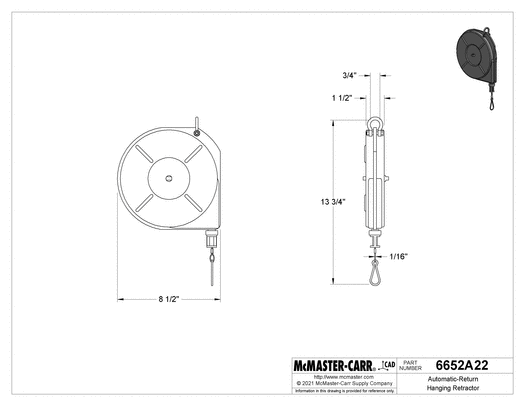

Height When Retracted
|
13 3/4" |
|
Housing Width
|
8 1/2" |
|
Housing Depth
|
3 3/8" |
|
Housing Material
|
Steel |
|
Weight
|
11 lbs. |
|
Tool Attachment Type
|
Spring-Latch Clip |
|
Features
|
Adjustable Cable Stop |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
Germany |
|
Schedule B
|
842890.0390 |
|
ECCN
|
EAR99 |
