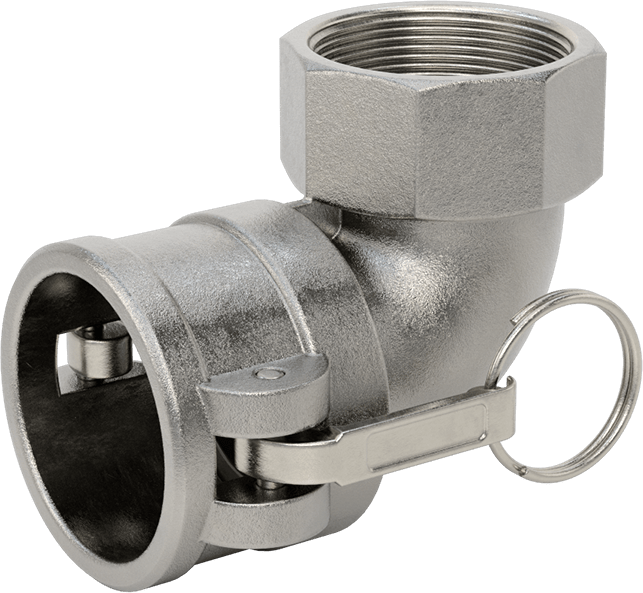

McMaster 6795K17 316 Stainless Steel Cam-and-Groove Hose Coupling, 90 Degree Socket with 316 Stainless Steel Levers, 2 Coupling Size x 2 NPT Female
Original price
$810.49
-
Original price
$810.49
Original price
$810.49
$810.49
-
$810.49
Current price
$810.49
Made of metal, these couplings have better durability than plastic cam-and-groove couplings. A complete coupling consists of a plug and a socket (both sold separately) that allow you to quickly connect and disconnect medium-to-large-diameter hose lines. To connect, insert the plug into the socket and press the levers down. The levers fit snugly into the groove on the plug's body and force the plug against the gasket to form a tight seal. The 90Β° elbow shape allows hose connections to make tight turns. Couplings are compatible with Andrews, Dixon, Ever-Tite, and PT cam-and-groove couplings. 316 stainless steel has excellent corrosion resistance.
| For Use With | Citric Acid, Diesel Fuel, Gasoline, Hydraulic Fluid |
| Shape | 90Β° Elbow |
| Type | Adapter |
| Cam-and-Groove Component | Socket |
| Socket Locking Type | Lever |
| Flow Control | Open |
| Connection Style | Cam-and-Groove Female Γ Threaded Female |
| Coupling Size | 2 |
| Socket ID | 2 1/2" |
| Pipe Size | 2 |
| Thread Type | NPT |
| Dash Size | 32 |
| Material | 316 Stainless Steel |
| Number of Levers | 2 |
| Lever Material | 304 Stainless Steel |
| Pull Ring Material | 300 Series Stainless Steel |
| Gasket Material | Buna-N Rubber |
| Maximum Pressure | 250 psi @ 72Β° F |
| Temperature Range | -65Β° to 250Β° F |
| Compatible With | Andrews, Dixon, Ever-Tite, PT Cam-and-Groove |
| Specifications Met | Fed. Spec. A-A-59326 |
| Country of Origin | United States |
