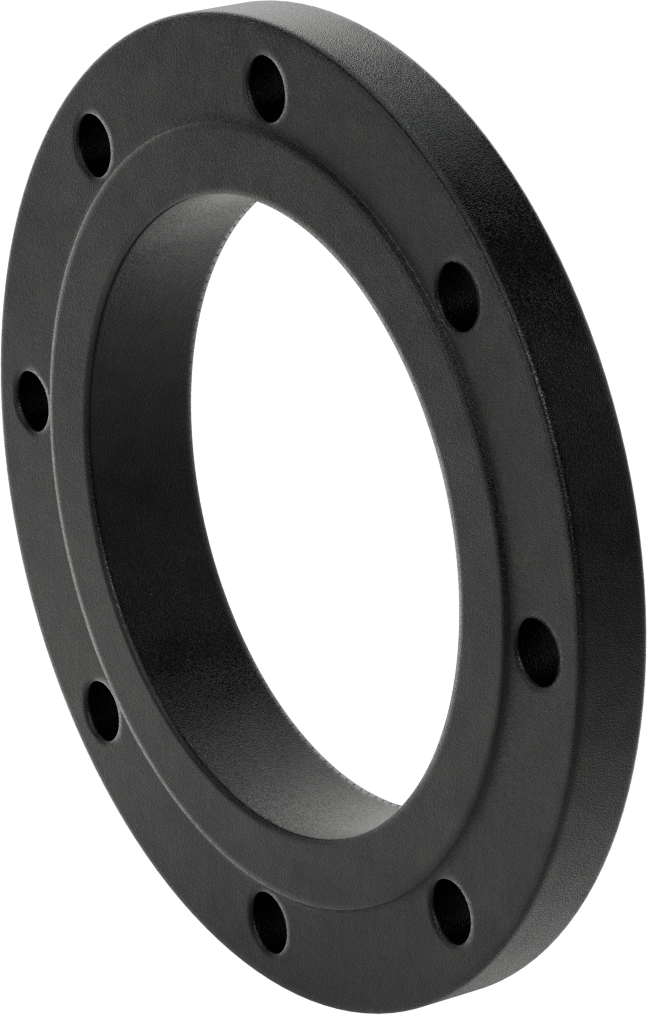

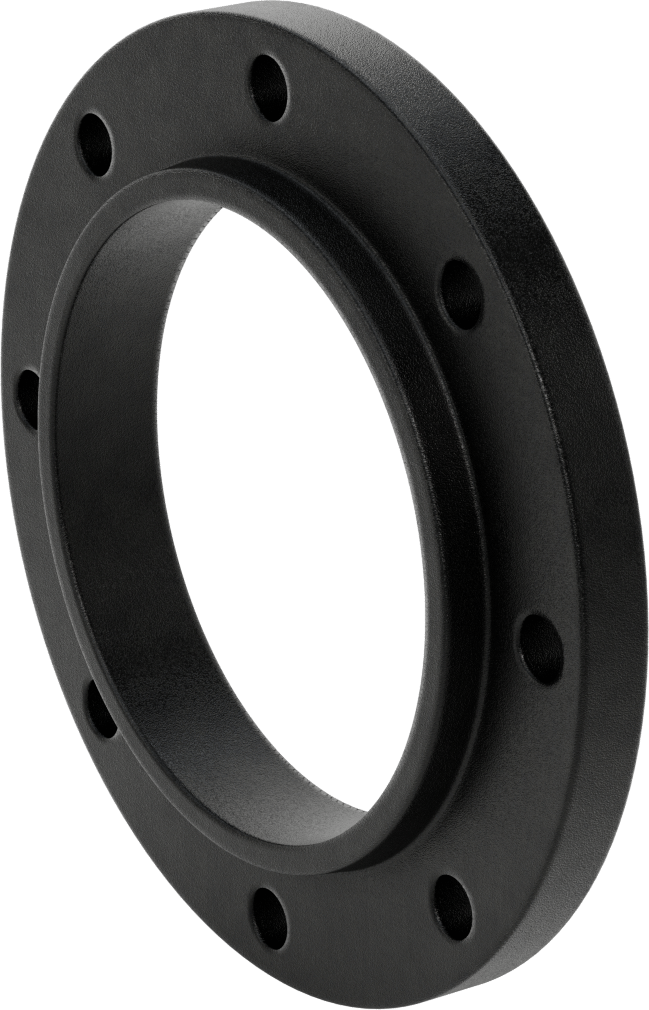

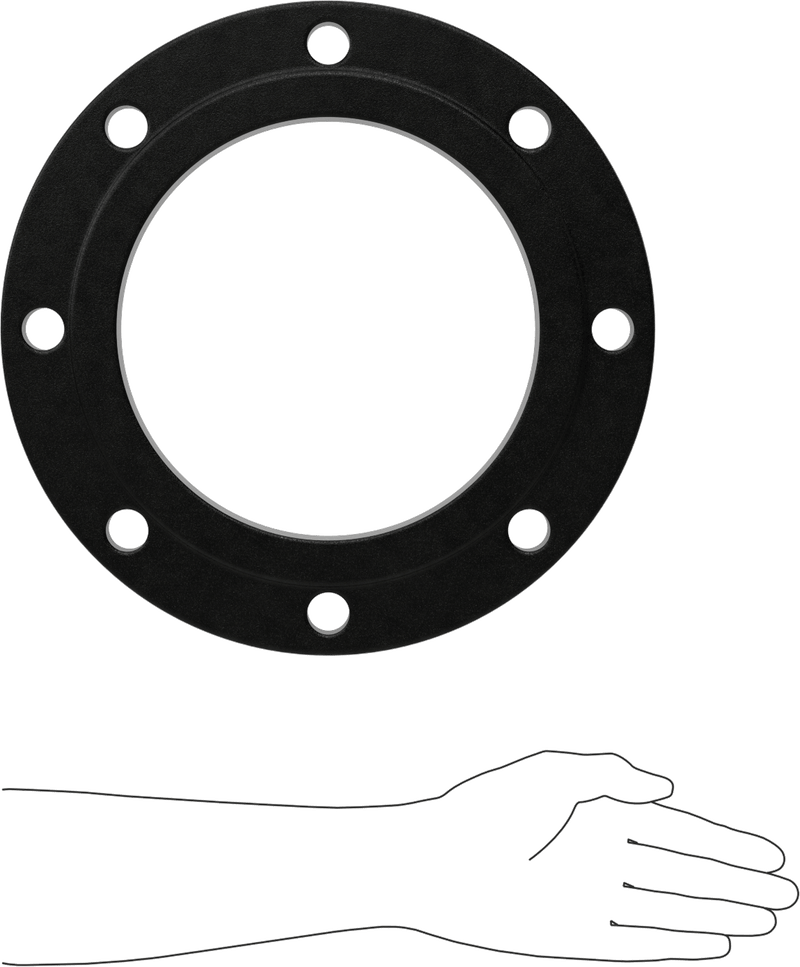

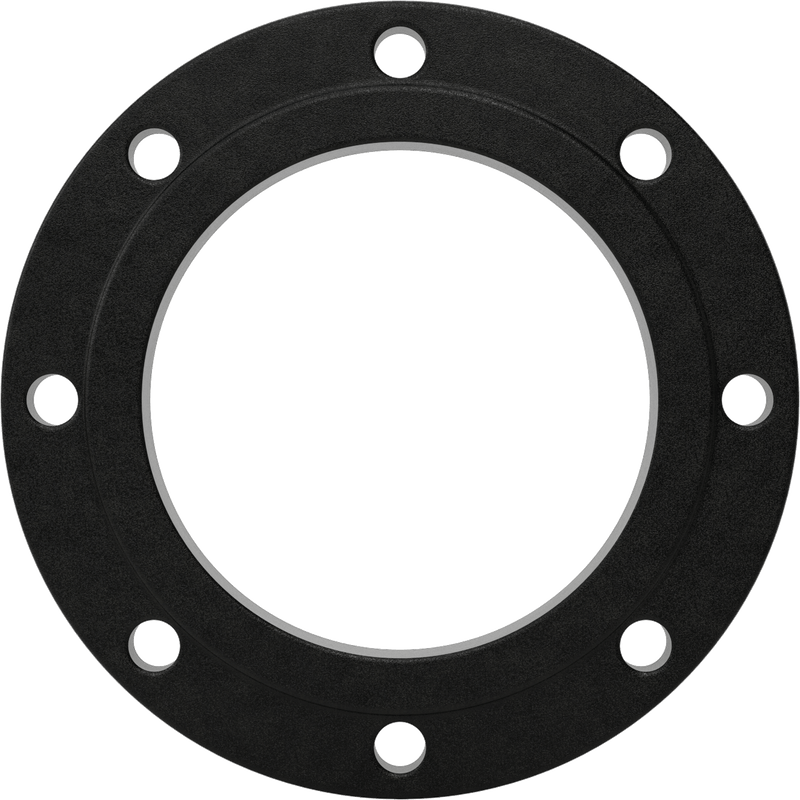

McMaster 68095K397 Low-Pressure Steel Unthreaded Pipe Flange, Slip-on Weld Adapter, 8 Pipe Size
Original price
$311.51
-
Original price
$311.51
Original price
$311.51
$311.51
-
$311.51
Current price
$311.51
Bolt two flat-surface flanges or two raised-surface flanges of the same size together with a gasket (sold separately) to create an access point in a pipe line. Flanges are for use with low-pressure applications in noncorrosive environments.
Slip-on-Weld Fitting Connection — Slip-on weld flanges have no internal stop; slide a pipe through the flange and weld on both sides.
| Pressure Rating | Low Pressure |
| Shape | Straight |
| Fitting Type | Flange |
| Fitting Connection | Slip-On Weld Female |
| Pipe Size (A) | 8 |
| Pipe Size (B) | 8 |
| Flanged Connection Surface (B) | Raised |
| Flange OD | 13 1/2" |
| For Bolt Diameter | 3/4" |
| Bolt Hole Diameter | 7/8" |
| Number Of Bolt Holes | 8 |
| Bolt Circle Diameter | 11 3/4" |
| Pressure Class | 150 |
| Material | Steel |
| Maximum Pressure @ Temperature | 285 psi @ 72° F |
| Maximum Steam Pressure @ Temperature | 150 psi @ 300° F |
| Certificate Form | Digital |
| Certificate Type | Material Certificate with Traceable Lot Number |
| Connects To | Pipe |
| Flange Construction | One Piece |
| For Fitting Material | Iron, Steel |
| For Fitting Schedule | 40 |
| For Pipe Material | Steel |
| For Pipe Schedule | 40 |
| For Use With | Air, Natural Gas, Oil, Steam, Water |
| Specifications Met | ANSI/MSS SP-25, ASME B16.5, ASTM A105 |
| Threading | Unthreaded |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 730791.2000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
