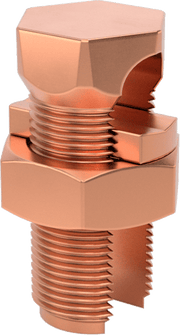

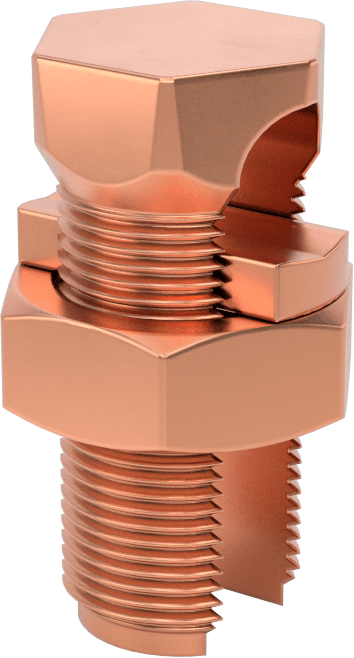

McMaster 6921K63 Split-Bolt Splice, for 2-2/0 Wire Gauge Copper Wire
Original price
$70.33
-
Original price
$70.33
Original price
$70.33
$70.33
-
$70.33
Current price
$70.33

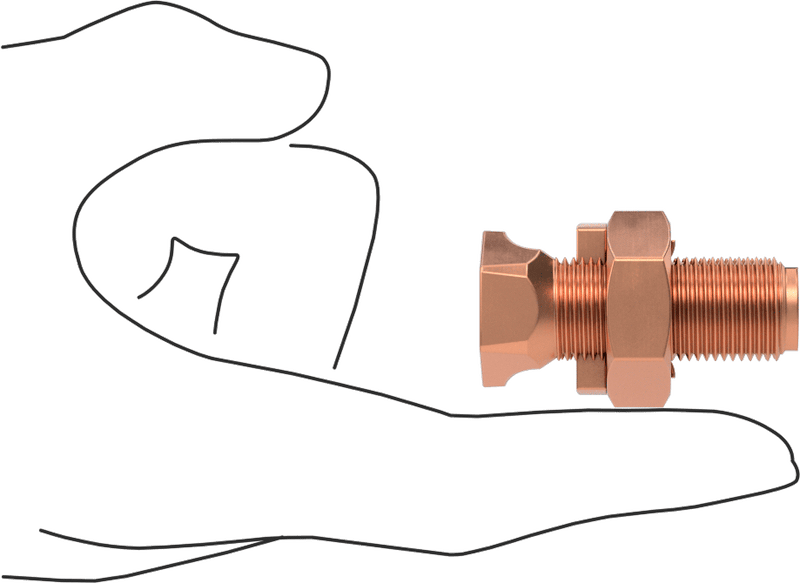

Slide large wires in and tighten the hex nut for a strong, secure hold between the wire and screw. Loosen the hex to make a quick adjustment or to reuse the splice elsewhere. These splices are easy to use, but the connection isn't fully protected by the body of the splice.
| Splice Type | Split-Bolt Splice |
| Insulation | Noninsulated |
| Number of Wires | 2 |
| Wire Gauge | 2 to 2/0 |
| Wire Construction | Solid, Stranded |
| Wire Material | Copper |
| Tap Wire Minimum Gauge | 14 |
| Tap Wire Construction | Stranded |
| Wire Slot Width | 0.42" |
| Head Width | 0.81" |
| Terminal Material | Copper |
| Maximum Temperature | 190° F |
| Maximum Voltage | 600V AC |
| Certification | CSA Certified, UL Listed |
| Application | Splicing, Tapping |
| Performance | No Crimp, Reusable |
| Reusable | Yes |
| Signal Type | Power |
| Wire Connection Method | Screw On |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 853690.4000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
