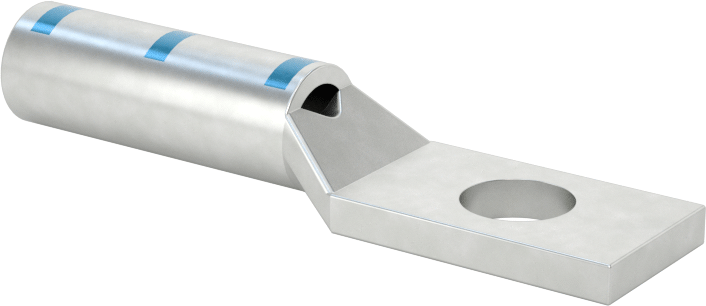

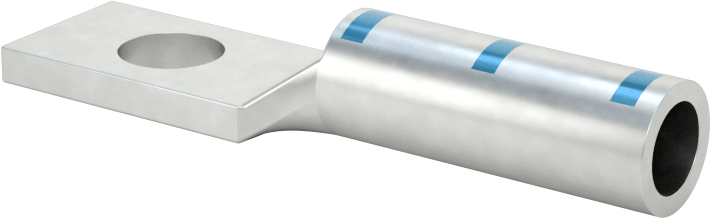

McMaster 6926K75 Tin-Plated Copper Compression Lug, 1 Hole, Single Crimp, for 6 AWG and 1/4" Screw
Original price
$41.55
-
Original price
$41.55
Original price
$41.55
$41.55
-
$41.55
Current price
$41.55

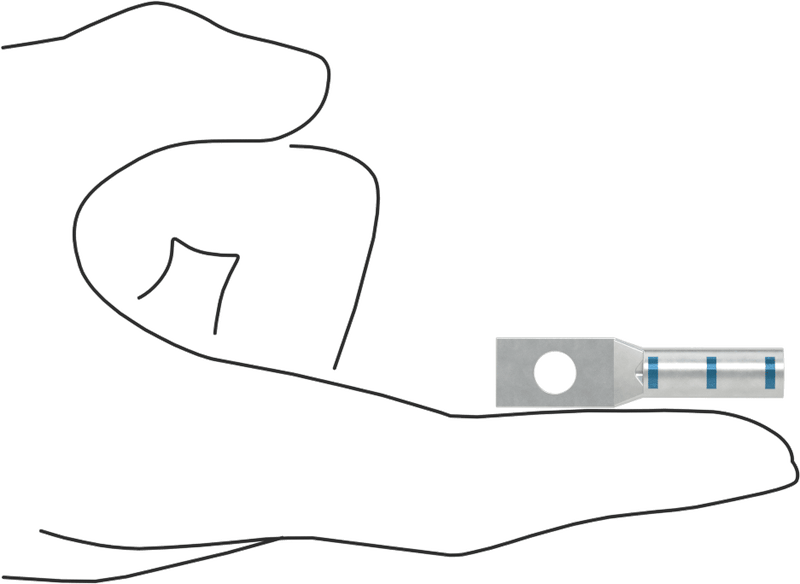

These lugs connect wire as large as 500 MCM in industrial feeder circuits, high-power service entrances, and other large systems. Squeeze the barrel tightly and evenly onto the wire with a compression tool for a permanent connection that stands up to heavy vibration, sudden shocks, and daily wear and tear. Compression lugs are a step up from set screw lugs when you need a physically strong connection, though set screw lugs attach to even larger wire.
Single Crimp — Provides a secure enough grip for most jobs.
Noninsulated — The basic, economical option when short circuits from nearby wiring aren't a concern.
| Number of Holes | 1 |
| For Wire Gauge | 6 |
| For Screw Size | 1/4" |
| For Screw Decimal Equivalent | 0.250" |
| Length | 1.625" |
| Width | 0.410" |
| Height | 0.290" |
| Thickness | 0.09" |
| Stripe Color | Blue |
| For Wire Construction | Stranded |
| For Wire Material | Copper |
| Terminal Material | Tin-Plated Copper |
| Maximum Temperature | 190° F |
| Maximum Voltage | 600V AC |
| Certification | CSA Certified, UL Listed |
| Barrel Type | Closed |
| Crimp Type | Single |
| Insulation | Noninsulated |
| Performance | Vibration Resistant |
| Shape | Straight |
| Signal Type | Power |
| System of Measurement | Inch |
| Terminal Type | Compression Lug |
| UL File Number | E12822 |
| Wire Connection Method | Compression |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 853690.4000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
