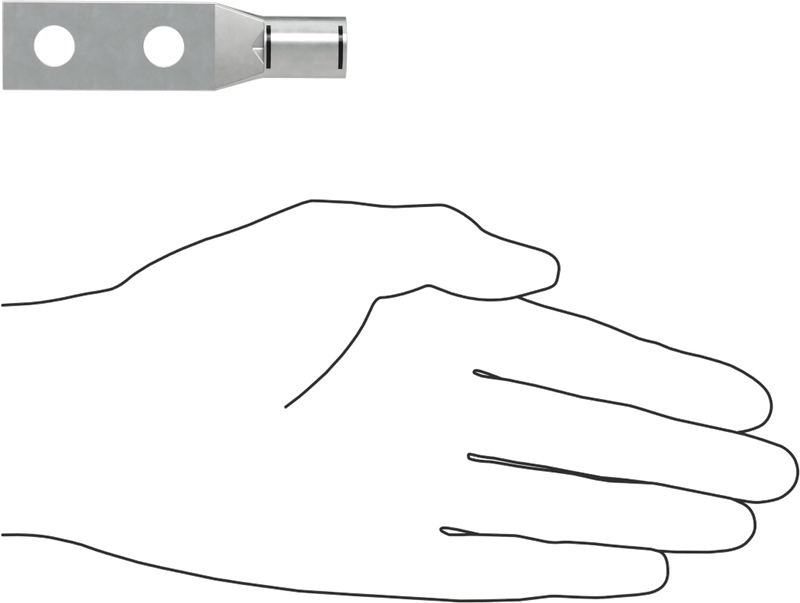

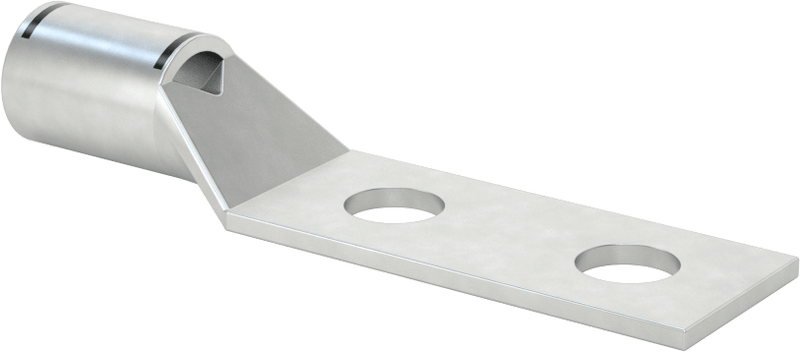

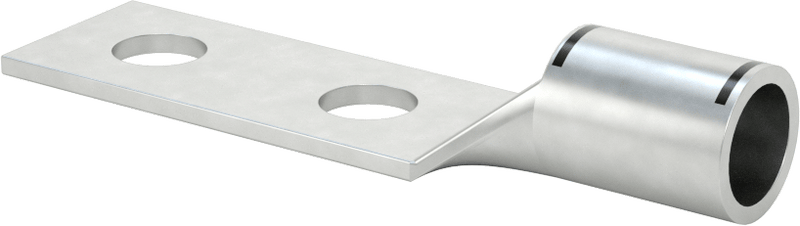

McMaster 6926K89 Tin-Plated Copper Compression Lug, 2 Holes, Single Crimp, for 2/0 AWG and 3/8" Screw
Original price
$55.62
-
Original price
$55.62
Original price
$55.62
$55.62
-
$55.62
Current price
$55.62
These lugs connect wire as large as 500 MCM in industrial feeder circuits, high-power service entrances, and other large systems. Squeeze the barrel tightly and evenly onto the wire with a compression tool for a permanent connection that stands up to heavy vibration, sudden shocks, and daily wear and tear. Compression lugs are a step up from set screw lugs when you need a physically strong connection, though set screw lugs attach to even larger wire.
Single Crimp β Provides a secure enough grip for most jobs.
Noninsulated β The basic, economical option when short circuits from nearby wiring aren't a concern.
| Number of Holes | 2 |
| Hole Center-to-Center | 1" |
| For Wire Gauge | 2/0 |
| For Screw Size | 3/8" |
| For Screw Decimal Equivalent | 0.375" |
| Length | 3.125" |
| Width | 0.811" |
| Height | 0.562" |
| Thickness | 0.125" |
| Stripe Color | Black |
| For Wire Construction | Stranded |
| For Wire Material | Copper |
| Terminal Material | Tin-Plated Copper |
| Maximum Temperature | 190Β° F |
| Maximum Voltage | 600V AC |
| Certification | CSA Certified, UL Listed |
| Barrel Type | Closed |
| Crimp Type | Single |
| Insulation | Noninsulated |
| Performance | Vibration Resistant |
| Shape | Straight |
| Signal Type | Power |
| System of Measurement | Inch |
| Terminal Type | Compression Lug |
| UL File Number | E6207 |
| Wire Connection Method | Compression |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 853690.4000 |
| U.S.βMexicoβCanada Agreement (USMCA) Qualifying | Yes |
