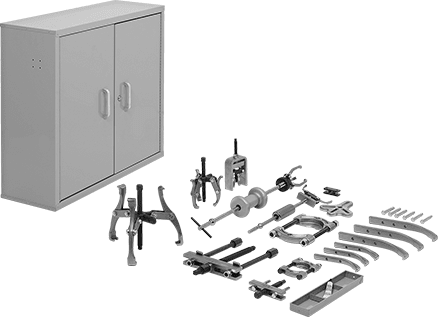

McMaster 69715A45 Reversible Jaw External/Internal Grip Puller Set with Locking Storage Box

McMaster 69715A45 Reversible Jaw External/Internal Grip Puller Set with Locking Storage Box

$3,228.93 - $3,228.93
$3,228.93
$3,228.93 - $3,228.93
$3,228.93

Complete with a locking cabinet, use the pullers in this set to tackle a wide variety of pulling jobs—use pullers to grip objects from the outside or the inside. To grip objects on the outside, attach puller jaws with tips facing in. To grip objects from inside, attach the puller jaws with tips facing out.

Weight Capacity

5 1/2 ton to 7 1/2 ton
Puller Material

Steel
Includes

Internal Extractor (for 1/2"-1-7/8" ID, 1-1/2" Reach)
Six Cap Screws (3 of each: 3/8"-24 × 3" Lg., 3/8"-16 × 3" Lg.) for Adjustable Face-Grip Puller
Steel Locking Cabinet (25 3/4" Height, 29 1/2" Width, 10" Depth)
2/3 Reversible-Jaw External/Internal Grip Puller (For 1 1/4"-6 3/4" ID, For 1/4"-6" OD, 4-3/4" Reach) with Slide Hammer
Adjustable Face-Grip Puller (For 3 1/4"-9 5/8" OD) with 6 3/4” Long Forcing Screw
Adjustable Face-Grip Puller (For 3/4"-4 1/4" OD) with 4 1/4” Long Forcing Screw
Combination 2/3-Jaw External Grip Puller—7 1/2-ton Capacity (For Up To 10 1/2" OD, 5" Reach)
Combination 2/3-Jaw External Grip Puller—5 1/2-ton Capacity (For Up To 7" OD, 3 1/4" Reach)
Two Sets of Long-Reach Jaws (Three Jaws for 5 1/2-ton Capacity Puller and Three Jaws for 7-ton Capacity Puller)
Bearing Separator (1/4"-1 3/4 Spread)
Bearing Separator (3/4"-4 1/4" Spread)
Jaw Style

External and Internal
Country of Origin

Germany
DFARS Compliance

Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)

EAR99
REACH Compliance

REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant
RoHS Compliance

RoHS 3 (2015/863/EU) Compliant
Schedule B Number

820559.9000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying

No
