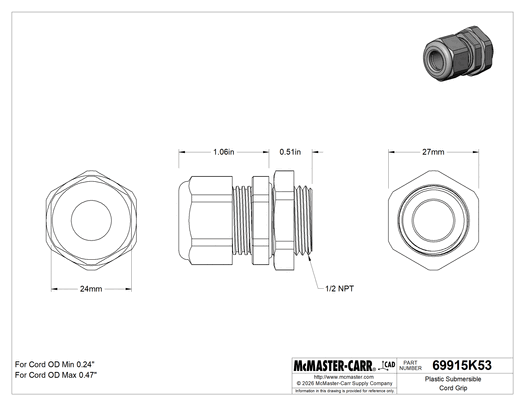

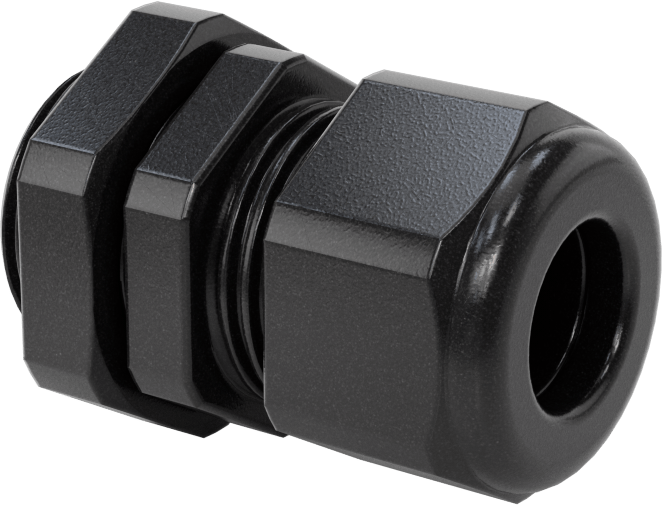

McMaster 69915K53 Plastic Submersible Cord Grip, NPT Threads, for 0.24"-0.47" Cord OD, 1/2 Knockout Size
UPC: | Harmonization / Schedule B : 3926.90.9988
Country of Origin: Germany | Shipping Weight: 0.1 lbs
Original price
$44.82
-
Original price
$44.82
Original price
$44.82
$44.82
-
$44.82
Current price
$44.82
Block out liquid while securing cords where they enter enclosures. Sealed with an O-ring, these cord grips are IP and NEMA rated to keep out dust and water, even during washdowns. A locknut anchors them in the knockout.
| Shape | Straight |
| Thread Type | NPT |
| For Cord OD | 0.24" to 0.47" |
| For Knockout Trade Size | 1/2 |
| Material | Nylon |
| Enclosure Rating | IP68, IP69K, NEMA 4X, NEMA 6, NEMA 12 |
| Temperature Range | -20° F to 210° F |
| For Cord Shape | Round |
| Flammability Rating | UL 94 V-0 |
| Specifications Met | UL 746C f1 |
| Certification | CE Marked, CSA Certified, UL Listed |
| Features | Nylon Plastic Locknut, Rubber O-Ring |
| Bushing Material | Rubber |
| Color | Black |
| Connects To | Electrical Box |
| Cord Holding Type | Compression Seal |
| Environment | Outdoor, Submersible, Corrosive, Dusty, High-Pressure Washdown, Oily, Washdown, Wet |
| Flexibility | Rigid |
| Knockout Connection | Threaded |
| Performance | Chemical Resistant, Lightweight, Liquid Tight, Dust Tight, Oil Resistant, Flame Retardant |
| Pipe Size | 1/2 |
| Country of Origin | Germany |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 392690.9988 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
