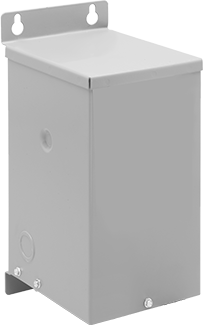

McMaster 7131K26 Enclosed Isolating AC to AC Transformer Single Phase, Step Down/Constant Voltage, 10000VA
These transformers have isolated primary and secondary coils to protect your sensitive equipment from input voltage spikes.
Sealed coils and cores prevent corrosion and insulation damage.
When wired as constant voltage transformers, they filter out voltage spikes and electrical noise.
|
Application
|
Power |
|
Transformer Type
|
AC to AC |
|
Transformer Voltage Function
|
Constant, Step Down |
|
Electrical Phase
|
Single |
|
Voltage
|
|
|
Input
|
240V AC, 480V AC |
|
Output
|
120V AC, 240V AC |
|
Power Output
|
10,000 VA |
|
Connection Type
|
|
|
Input
|
Hardwire |
|
Output
|
Hardwire |
|
Wire Connection Type
|
|
|
Input
|
Wire Leads |
|
Output
|
Wire Leads |
|
Frequency
|
60 Hz |
|
Height
|
15.2" |
|
Width
|
13 1/2" |
|
Depth
|
10.8" |
|
Features
|
Isolated Coils, Sealed Coils, Sealed Cores |
|
Environment
|
Outdoor |
|
Environmental Rating
|
NEMA 3R |
|
Specifications Met
|
UL Listed, CSA Certified |
|
RoHS
|
Not Compliant |
|
REACH
|
Not Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
Mexico |
|
USMCA Qualifying
|
No |
|
Schedule B
|
850432.0000 |
|
ECCN
|
EAR99 |
