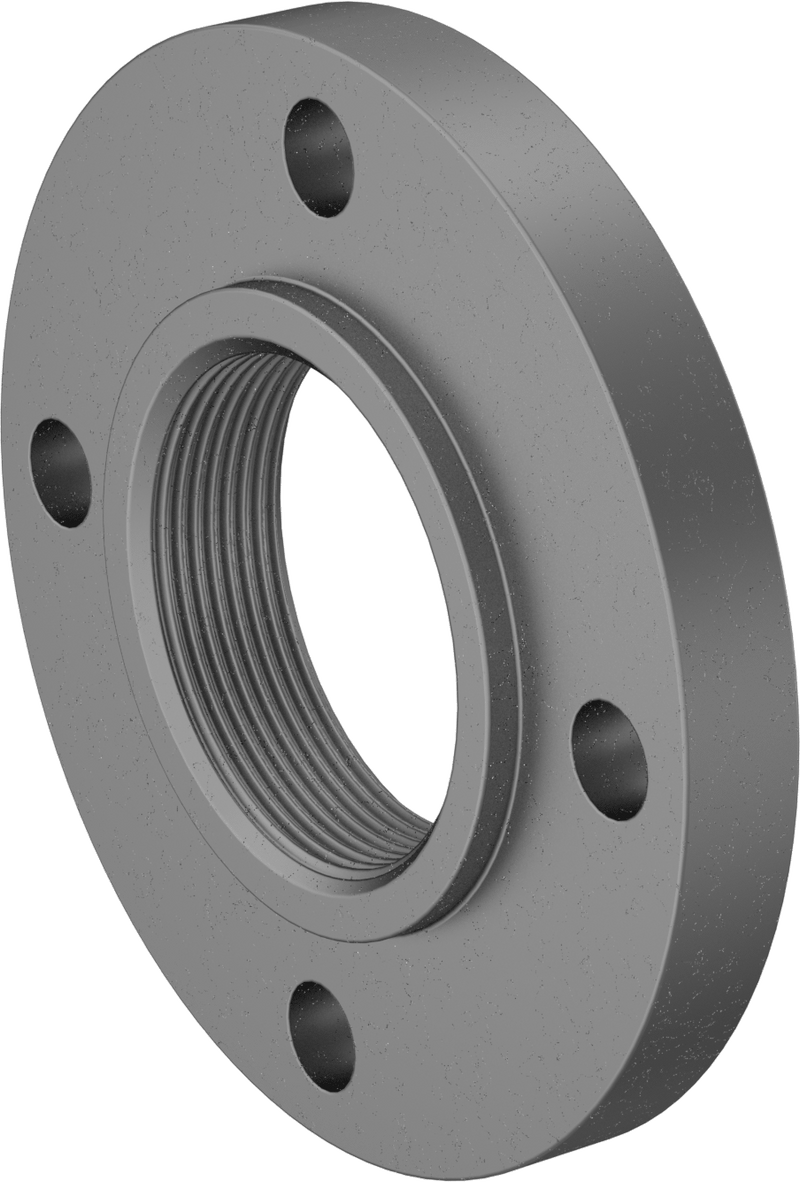

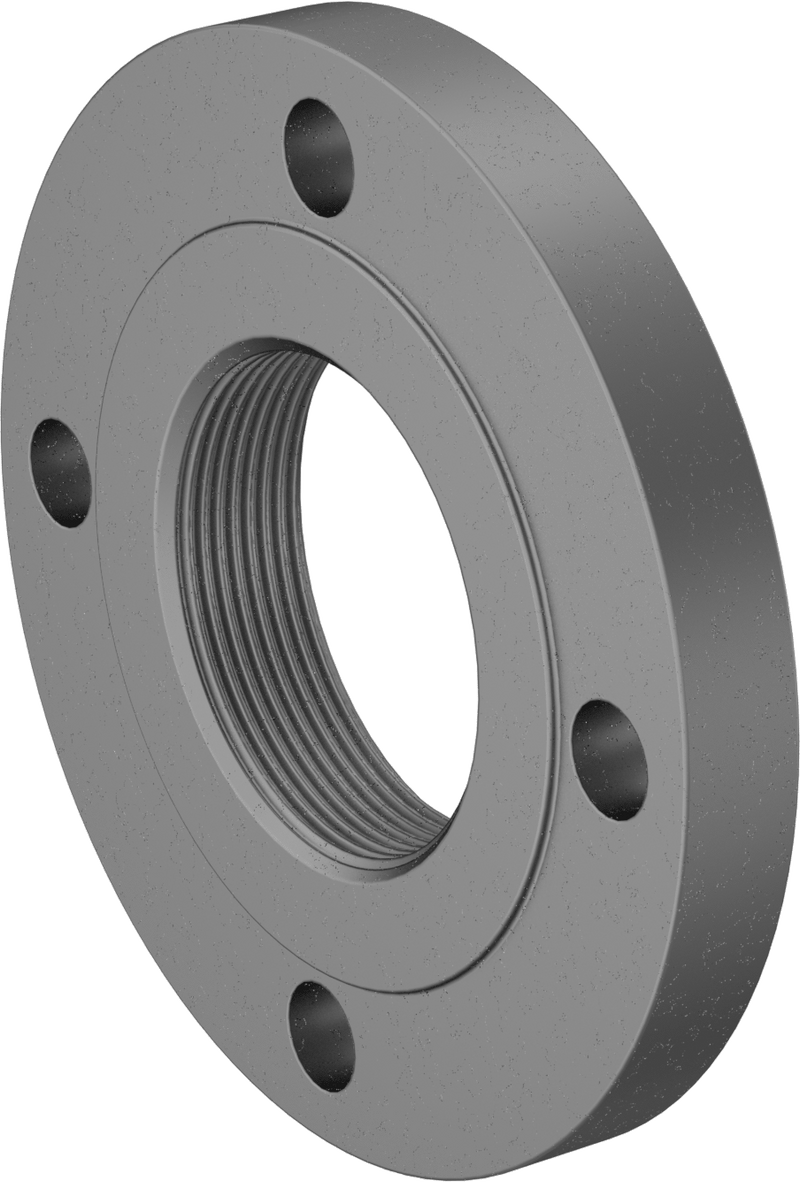

McMaster 7551K127 Low-Pressure Galvanized Steel Pipe Flange, 3 NPT, Class 150, ASME B16.5
Original price
$193.25
-
Original price
$193.25
Original price
$193.25
$193.25
-
$193.25
Current price
$193.25
The galvanized finish on these flanges provides fair corrosion resistance. Also known as Pressure Class 150 flanges, they are for use in low-pressure applications. Bolt two same-size flanges together with a gasket (sold separately) to create an access point within a line.
| Pressure Rating | Low Pressure |
| Shape | Straight |
| Fitting Type | Flange |
| Fitting Connection | NPT Female |
| Pipe Size | |
| (A) | 3 |
| (B) | 3 |
| Flanged Connection Surface (B) | Raised |
| Flange OD | 7 1/2" |
| For Bolt Diameter | 5/8" |
| Bolt Hole | |
| Diameter | 3/4" |
| Number Of | 4 |
| Bolt Circle Diameter | 6" |
| Pressure Class | 150 |
| Material | Galvanized Steel |
| Maximum Pressure @ Temperature | 285 psi @ 72° F |
| Maximum Steam Pressure @ Temperature | 150 psi @ 300° F |
| Certificate Form | Digital |
| Certificate Type | Material Certificate with Traceable Lot Number |
| Connects To | Pipe |
| Flange Construction | One Piece |
| For Fitting Material | |
| (A) | Galvanized Iron |
| (B) | Galvanized Steel |
| For Pipe Material | Galvanized Steel |
| For Pipe Schedule | 40 |
| For Fitting Pressure Class | 125, 150 |
| For Use With | Air, Natural Gas, Oil, Steam, Water |
| Specifications Met | ASME B16.5, ASTM A105, ASTM A123 |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 7307.91.2000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
