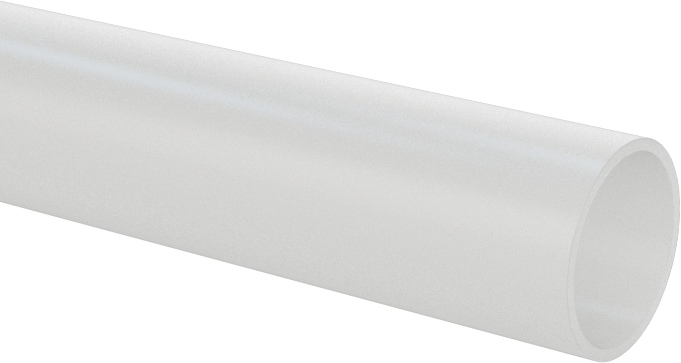

McMaster 7564K731 High-Temperature Heat-Shrink PTFE Tubing, for 8 Wire Gauge, 0.24" ID Before Shrinking, 4 Feet Long
Original price
$110.25
-
Original price
$110.25
Original price
$110.25
$110.25
-
$110.25
Current price
$110.25
Use this tubing in applications where temperatures reach up to 500° F. It’s often used to insulate electronic components. Tubing resists abrasion and chemicals. Semi-rigid, it bends only slightly.
Dielectric Strength — Dielectric strength is the maximum voltage a material can handle before it starts to breakdown. The higher the dielectric strength of a material, the better it is for preventing electricity, heat, or signal from dissipating from wire and cable.
| Material | PTFE |
| Shrink Ratio | 2:1 |
| Length | 4 ft. |

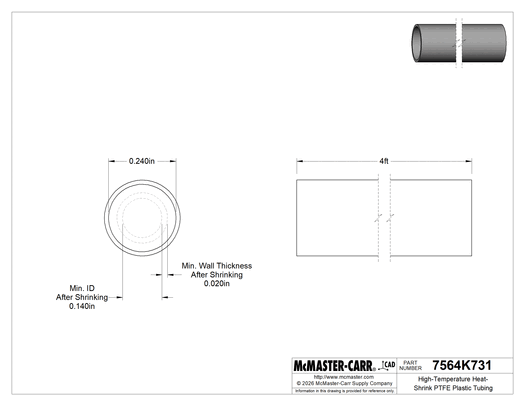

| Before Shrinking | 0.24" |
| Minimum After Shrinking | 0.14" |
| Minimum Wall Thickness After Shrinking | 0.02" |
| For Wire Gauge | 8 |
| Dielectric Strength | 455 V/mil |
| Shrink Temperature | 660° F |
| Temperature Range | -325° F to 500° F |
| Flexibility | Semi-Rigid |
| Color | Semi-Clear White |
| Heat-Shrink Tubing Type | Tubing |
| Performance | Chemical Resistant, Abrasion Resistant, High Temperature |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 392690.9988 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
