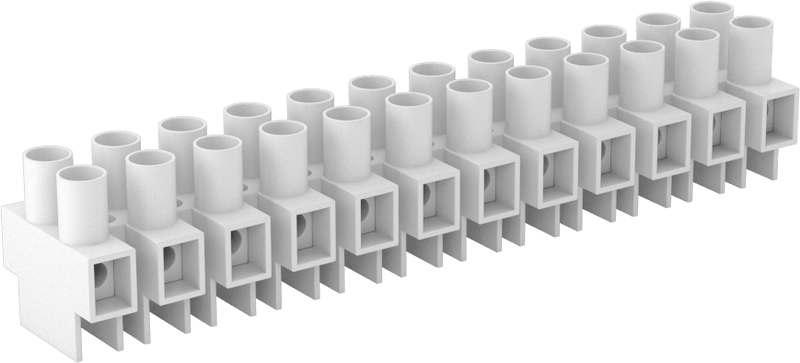

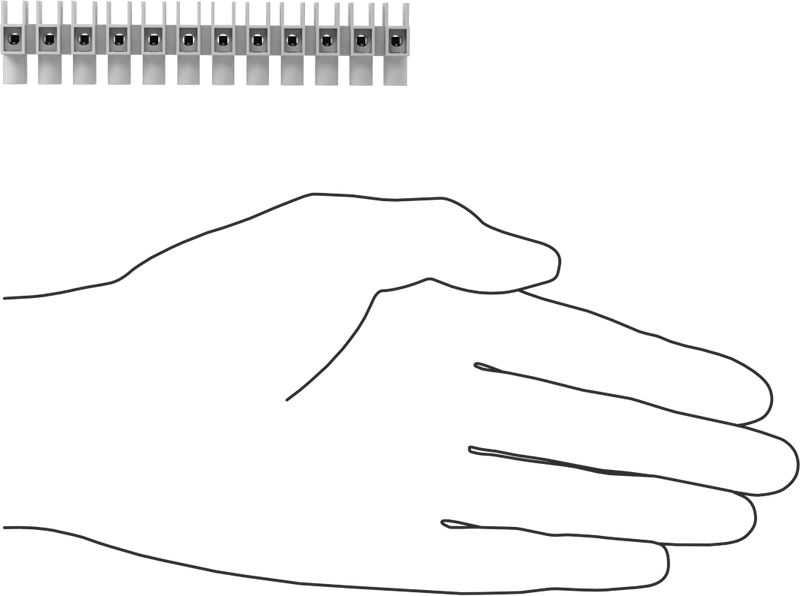

McMaster 7618K618 Short-Resistant Terminal Block, 600V AC/DC, Twelve 20A Circuits, Molex M800-01-12-5-M1
Original price
$43.67
-
Original price
$43.67
Original price
$43.67
$43.67
-
$43.67
Current price
$43.67
These terminal blocks protect you from shocks and prevent short circuits. The terminals are recessed in the block, so you can't accidentally touch them when installing or adjusting your wire.
Screw-Clamp-Terminal Wire Connection — The clamp flattens the wire to resist pullout and vibration better than screw terminals. For an even stronger and more conductive connection, crimp a terminal or wire ferrule onto the end of the wire.
| Voltage | 600V AC/600V DC |
| Current per Circuit | 20 amp |
| Number of Circuits | 12 |
| For Wire Ga. | 22 to 12 |
| Wire Connection | Screw-Clamp Terminal |
| Terminal Size | M3 |
| Terminal Center-to-Center | 5/16" |
| Length | 3 11/16" |
| Width | 3/4" |
| Height | 3/4" |
| Minimum Temperature | Not Rated |
| Maximum Temperature | 221° F |
| Color | White |
| Mounting Holes | |
| Diameter | 0.12" |
| Number of | 11 |
| Center-to-Center Length | 0.32" |
| Certification | UL Recognized Component |
| Flammability Rating | UL 94 V-2 |
| Manufacturer | |
| Name | Molex |
| Model Number | M800-01-12-5-M1 |
| Mounting Fasteners Included | No |
| Mounting Location | Surface |
| Performance | Space Saving, Selectable Length, Touch Safe, Flame Retardant |
| Country of Origin | China |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
| RoHS Exemptions | 6(c) |
| Schedule B Number | 8536.90.4000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
