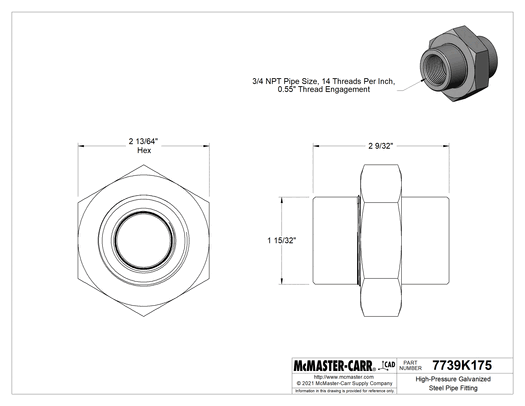

McMaster 7739K175 High-Pressure Galvanized Steel Pipe Fitting, Union Straight Connector, 3/4 NPT Female
Original price
$76.62
-
Original price
$76.62
Original price
$76.62
$76.62
-
$76.62
Current price
$76.62
A galvanized finish gives these fittings better corrosion resistance than our plain steel high-pressure fittings. Also known as Pressure Class 3000 fittings, they have excellent strength to handle high-pressure applications.
Union Fitting — Union fittings separate into three pieces so you can access your line without unthreading pipe connections.
| Pressure Rating | High Pressure |
| Shape | Straight |
| Fitting Type | Connector, Union |
| Fitting Connection | NPT Female |
| Pipe Size | 3/4 |
| Dash Size | 12 |
| Pressure Class | 3000 |
| Body Shape | Hex |
| Material | Galvanized Steel |
| Maximum Pressure @ Temperature | 3,000 psi @ 72° F |
| Maximum Steam Pressure @ Temperature | 300 psi @ 360° F |
| Connects To | Pipe |
| Fabrication | Forged |
| For Pipe Material | Galvanized Steel |
| For Pipe Schedule | 160 |
| For Use With | Air, Hydraulic Fluid, Natural Gas, Oil, Steam, Water |
| Hex Width | 2 13/64" |
| Length | 2 9/32" |
| Specifications Met | ASME B1.20.1, ASTM A105, ASTM B633, MSS SP-83 |
| System of Measurement | Inch |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 730799.2000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
