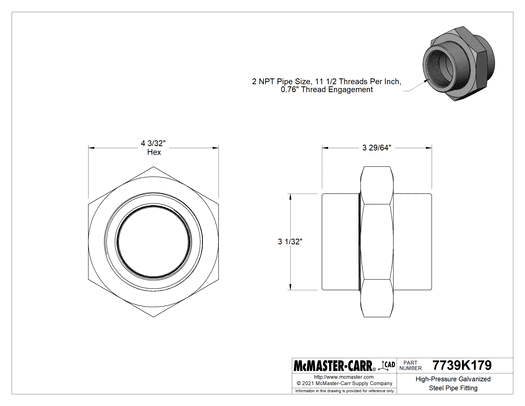

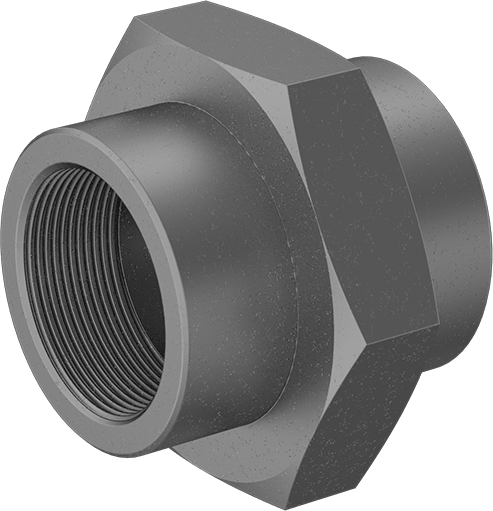

McMaster 7739K179 High-Pressure Galvanized Steel Pipe Fitting Union Straight Connector, 2 NPT Female
Original price
$133.13
-
Original price
$133.13
Original price
$133.13
$133.13
-
$133.13
Current price
$133.13
A galvanized finish gives these fittings better corrosion resistance than our plain steel high-pressure fittings. Also known as Pressure Class 3000 fittings, they have excellent strength to handle high-pressure applications.

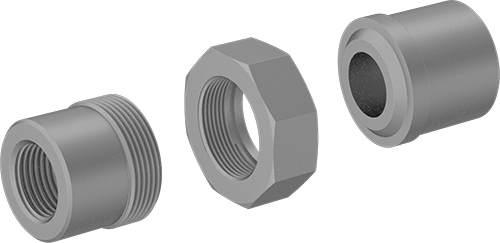

Union connectors separate into three pieces so you can access your line without unthreading pipe connections.
| For Use With | Air, Hydraulic Fluid, Natural Gas, Oil, Steam, Water |
| Shape | Straight |
| Type | Connector, Union |
| Body Shape | Hex |
| Pressure Class | 3000 |
| Fabrication | Forged |
| Connection Type | Pipe |
| Connection Style | Threaded |
| Connection | NPT Female |
| Pipe Size | 2 |
| Dash Size | 32 |
| Length | 3 29/64" |
| Hex Width | 4 3/32" |
| Maximum Pressure | 3,000 psi @ 72° F |
| Maximum Steam Pressure | 300 psi @ 360° F |
| Material | Galvanized Steel |
| For Pipe Schedule | 160 |
| Specifications Met | ASME B1.20.1, ASTM A105, ASTM B633, MSS SP-83 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | United States |
| USMCA Qualifying | Yes |
| Schedule B | 730799.2000 |
| ECCN | EAR99 |
