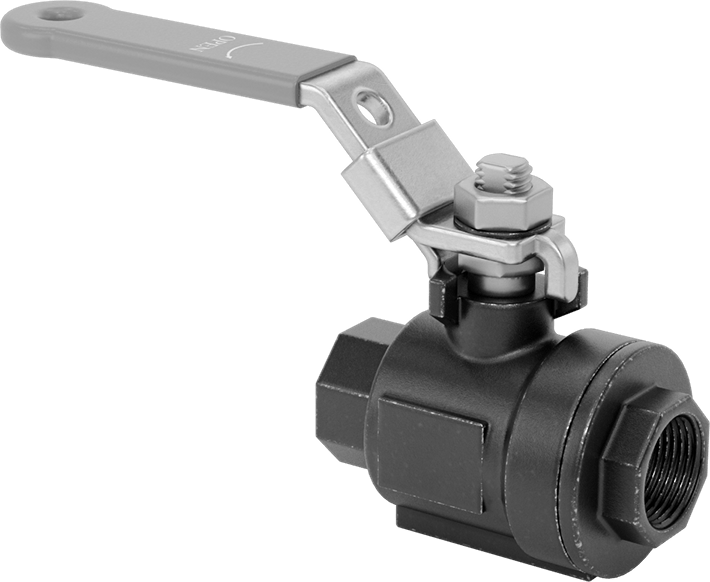

McMaster 8196N49 Threaded On/Off Valve, Steel with Lockable Lever Handle, 3/4 NPT Female x NPT Female
UPC: | Harmonization / Schedule B : 8481.80.3070
Country of Origin: Taiwan | Shipping Weight: 3.15 lbs
Original price
$178.49
-
Original price
$178.49
Original price
$178.49
$178.49
-
$178.49
Current price
$178.49
Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency.
Use these valves in general purpose applications, such as those with water, oil, air, and inert gas.
Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.
Lever handles give you the most leverage for quickly opening and closing valves with minimal effort.

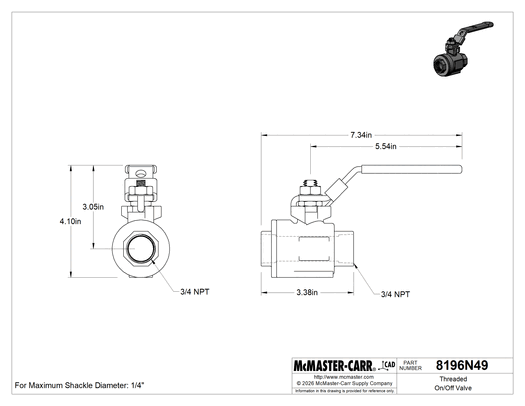

| Pipe Size | 3/4 |
| Flow Coefficient (Cv) | 40 |
| Maximum Pressure | 1000 psi @ 100° F |
| Maximum Steam Pressure | 200 psi @ 350° F |
| Temperature Range | -20° to 500° F |
| Vacuum Rating | 29.9 in. of Hg |
| Port Type | Full |
| End-to-End Length | 3 3/8" |
| Valve Function | On/Off |
| Valve Type | Ball |
| Activation | Manual |
| Valve Operation | Handle |
| Handle Style | Lever |
| Handle Type | Lockable |
| Fitting Type | Connector |
| Connection Type | Pipe |
| Connection Style | Threaded |
| Gender | Female × Female |
| Thread Type | NPT |
| For Use With | Air, Argon, Helium, Krypton, Neon, Oil, Steam, Water, Xenon |
| Body Material | Steel |
| Ball Material | 316 Stainless Steel |
| Seal Material | PTFE Plastic |
| Seat Material | PTFE Plastic |
| Shape | Straight |
| For Maximum Shackle Diameter | 1/4" |
| Height | 4 1/8" |
| Length | 7 5/16" |
| Chemical Resistance (Excellent) | Air, Argon, Helium, Krypton, Neon, Oil, Steam, Water, Xenon |
| Warning Message | Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency. |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | Taiwan |
| Schedule B | 848180.3070 |
| ECCN | EAR99 |
