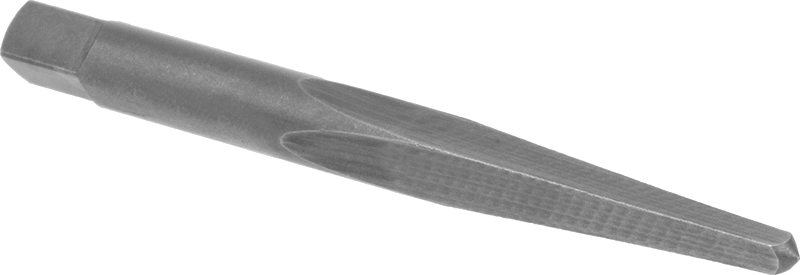

McMaster 8289A321 Extractor for Soft Material and Thin-Wall Parts, for 0.38"-0.39" Screw Thread Diameter
McMaster 8289A321 Extractor for Soft Material and Thin-Wall Parts, for 0.38"-0.39" Screw Thread Diameter
McMaster 8289A321 Extractor for Soft Material and Thin-Wall Parts, for 0.38"-0.39" Screw Thread Diameter
McMaster 8289A321 Extractor for Soft Material and Thin-Wall Parts, for 0.38"-0.39" Screw Thread Diameter
McMaster 8289A321 Extractor for Soft Material and Thin-Wall Parts, for 0.38"-0.39" Screw Thread Diameter
McMaster 8289A321 Extractor for Soft Material and Thin-Wall Parts, for 0.38"-0.39" Screw Thread Diameter

McMaster 8289A321 Extractor for Soft Material and Thin-Wall Parts, for 0.38"-0.39" Screw Thread Diameter

UPC: | Harmonization / Schedule B : 8205.59.5560

Country of Origin: United States | Shipping Weight: 0.02 lbs

$48.33 - $48.33
$48.33
$48.33 - $48.33
$48.33

The tapered wedge shape of these extractors won’t expand the broken part, making it easier to remove. After drilling, tap in with a hammer and turn. The part will back out without damaging the threads around it.

For Thread Direction Right Hand, Left Hand
Thread Diameter 0.38" to 0.39"
Size 3/8", M10
Use with Drill Bit Size 3/16"
Overall Length 2 7/8"
Flute Type Straight
Turns With Wrench
Material Steel
For Extracting Screws and Bolts, Threaded Studs, Threaded Rods
Sold As Individual
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance Not Compliant
Schedule B Number 820559.9000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying No
