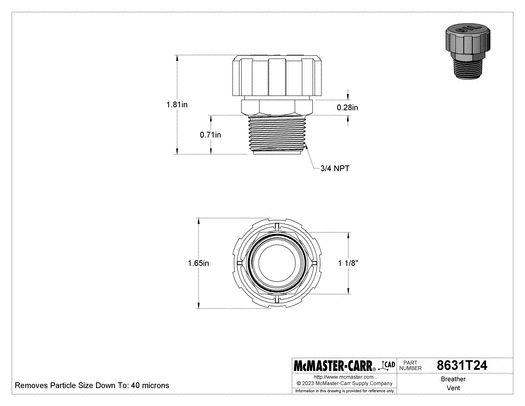

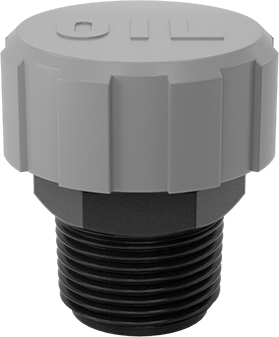

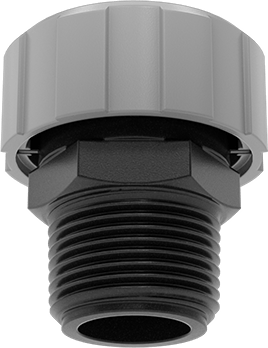

McMaster 8631T24 Breather Vent Nylon Plastic, 3/4 NPT Male
Original price
$23.85
-
Original price
$23.85
Original price
$23.85
$23.85
-
$23.85
Current price
$23.85
Protect against excess vacuum and pressure in cylinders, gear boxes, enclosures, manifolds, and tanks. You can also use these breather vents to block debris from entering equipment.
Breather vents with splash guard are good for containers that are often filled and drained; they have a guard that prevents oil from splashing out of the vent hole.
|
Style
|
C |
|
Connection Type
|
Pipe |
|
Pipe Connection Type
|
Threaded |
|
Pipe Size
|
3/4 |
|
Thread Type
|
NPT |
|
Gender
|
Male |
|
Maximum Flow Rate
|
Not Rated |
|
Maximum Pressure
|
Not Rated |
|
Maximum Temperature
|
210° F |
|
Height
|
1 13/16" |
|
Diameter
|
1 11/16" |
|
For Use With
|
Air, Oil |
|
Material
|
|
|
Body
|
Nylon Plastic |
|
Fitting
|
Nylon Plastic |
|
Filter
|
Polyurethane Rubber |
|
For Reducing
|
Particles |
|
Removes Particle Size Down To
|
40 microns |
|
Features
|
Splash Guard |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (01/23/2024, 240 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
Italy |
|
Schedule B
|
848110.0090 |
|
ECCN
|
EAR99 |
