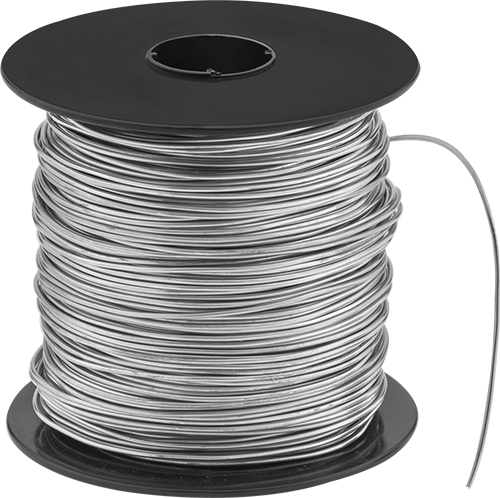

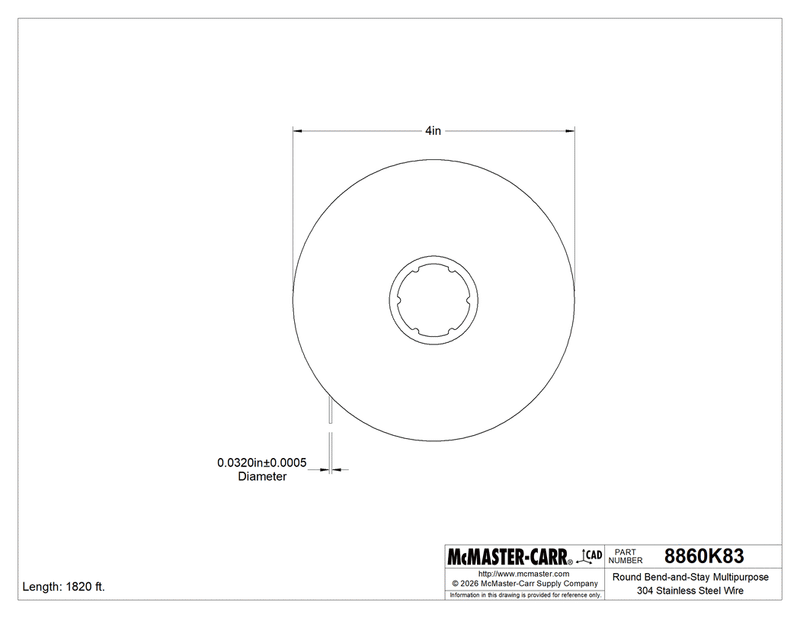

McMaster 8860K83 Round Bend-and-Stay Multipurpose 304 Stainless Steel Wire Matte Finish, 5-lb. Spool, 0.032" Diameter
When bent, this wire will stay in place. It is widely used as tying and locking wire.
304 Stainless Steel—It is a good all-around choice for a wide range of applications.
|
Flexibility
|
Bend and Stay |
|
Profile
|
Round |
|
Material
|
304 Stainless Steel |
|
Diameter
|
0.032" |
|
Diameter Tolerance
|
-0.0005" to 0.0005" |
|
Length
|
1,820 ft. |
|
Container
|
|
|
Type
|
Spool |
|
Net Weight
|
5 lb. |
|
Fabrication
|
Cold Drawn |
|
Specifications Met
|
ASTM A580 |
|
Appearance
|
Matte |
|
Certificate Form
|
Digital |
|
Certificate Type
|
Material Certificate with Traceable Lot Number |
|
Elongation
|
Not Rated |
|
Hardness
|
Not Rated |
|
Heat Treatable
|
No |
|
Heat Treatment
|
Annealed |
|
Magnetic Properties
|
Nonmagnetic |
|
Maximum Temperature
|
550° F |
|
Military Specification
|
MS20995 |
|
Minimum Temperature
|
Not Rated |
|
Performance
|
Corrosion Resistant, Chemical Resistant, High Strength, Ultra Formable, Highly Weldable |
|
Shape
|
Wire |
|
Tensile Strength
|
75,000 psi |
|
Tolerance Rating
|
Standard |
|
Warning Message
|
Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
|
Country of Origin
|
United States |
|
DFARS Compliance
|
Specialty Metals Compliant (252.225-7009) |
|
Export Control Classification Number (ECCN)
|
EAR99 |
|
REACH Compliance
|
REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
|
RoHS Compliance
|
RoHS 3 (2015/863/EU) Compliant |
|
Schedule B Number
|
722300.0000 |
|
U.S.–Mexico–Canada Agreement (USMCA) Qualifying
|
No |
