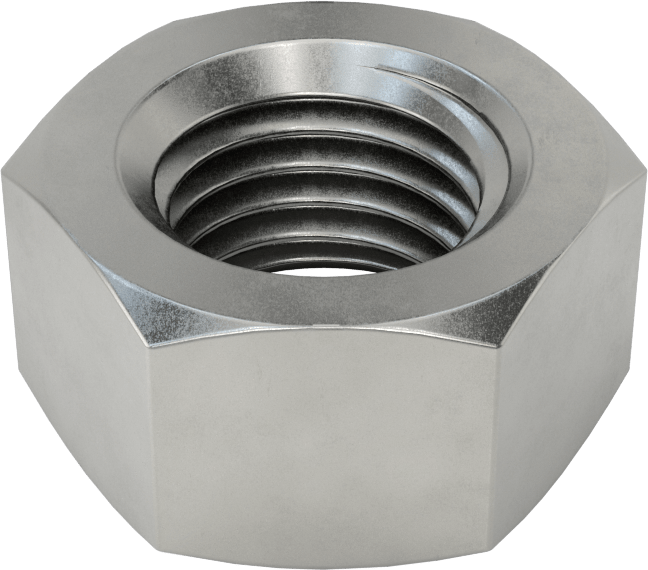

McMaster 90685A120 High-Strength Steel Hex Nut, Class 10, M16 x 2 mm Thread Size, Pack of 10
Original price
$50.73
-
Original price
$50.73
Original price
$50.73
$50.73
-
$50.73
Current price
$50.73
The most commonly used hex nuts, these are suitable for fastening most machinery and equipment.
High-Strength Steel—Rated Grade 8 or Class 10, these nuts are about 25% stronger than medium-strength steel nuts. They are commonly used to fasten components in valves, pumps, motors, and other high-stress applications. To avoid stripped threads during installation, make sure your screw has a comparable strength rating.
Steel — Best for dry environments since moisture will cause these nuts to rust.
| Hex Nut Profile | Standard |
| Fastener Strength Rating | High |
| Material | Steel |

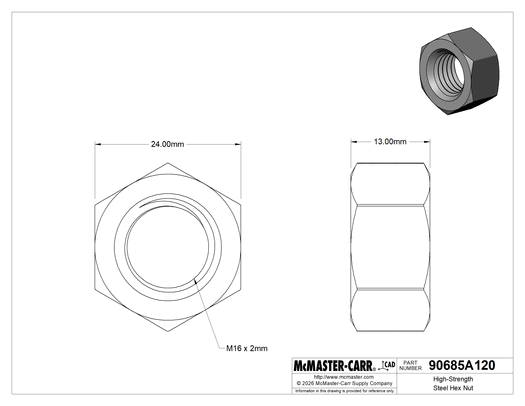

| Thread Size | M16 × 2 mm |
| Width | 24 mm |
| Height | 13 mm |
| Fastener Strength Grade/Class | Class 10 |
| Specifications Met | DIN 934 |
| Drive Style | External Hex |
| Nut Type | Hex |
| Performance | High Strength |
| System of Measurement | Metric |
| Thread Direction | Right Hand |
| Thread Fit | Metric Class 6H |
| Thread Spacing | Coarse |
| Thread Type | Metric |
| Country of Origin | China, Germany, Taiwan |
| DFARS Compliance | Not Specialty Metals Compliant |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 731816.0000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
