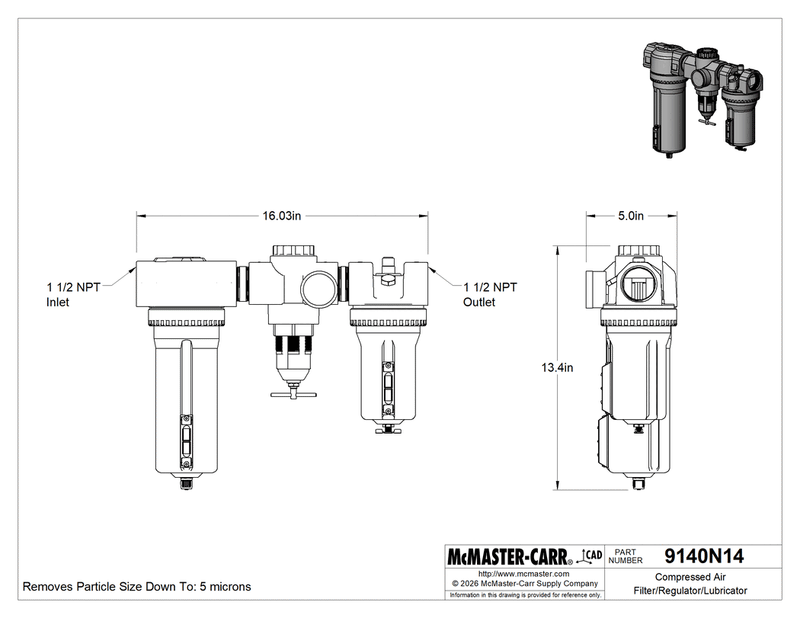

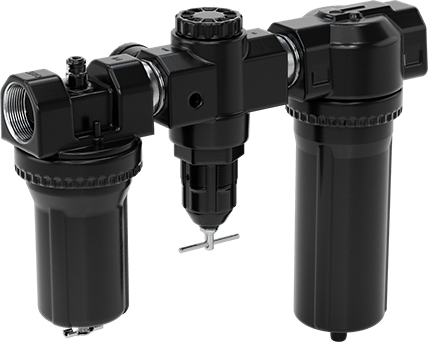

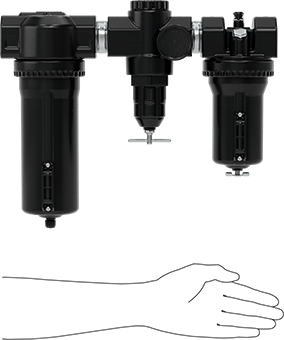

McMaster 9140N14 Compressed Air Filter/Regulator/Lubricator, Inline with Aluminum Bowl, 1-1/2 NPT Female
Original price
$1,708.75
-
Original price
$1,708.75
Original price
$1,708.75
$1,708.75
-
$1,708.75
Current price
$1,708.75
A filter, regulator, and lubricator combined, these FRLs provide clean, lubricated compressed air at your required pressure. The regulator is relieving, so it will exhaust when the downstream pressure exceeds the set pressure.
Inline Components β Inline FRLs are the standard design. Each part can be replaced or repaired on its own, which reduces maintenance costs.
Aluminum Bowl β Aluminum and zinc alloy bowls are stronger than plastic bowls, so they won't crack or shatter if they're dropped.
Automatic Drain β Bowls with an automatic drain periodically release condensate into the air, eliminating the need for manual emptying.
| Inlet/Outlet Connection | Threaded, 1-1/2 NPT Female |
| Pressure Adjustability | Adjustable |
| Component Configuration | Inline |
| Bowl Material | Aluminum |
| Bowl Type | Opaque with Sight Glass |
| Drain Type | Automatic |
| Pipe Size (Inlet/Outlet) | 1 1/2 |
| Maximum Flow Rate @ Pressure | 450 scfm @ 100 psi |
| Maximum Pressure | 200 psi |
| Removes Particle Size Down To | 5 ΞΌm |
| Pressure Regulation Range | 0 psi to 150 psi |
| Lubricant Capacity | 35 fl. oz. |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| Schedule B Number | 848110.0040 |
| USMCA Qualifying | No |
