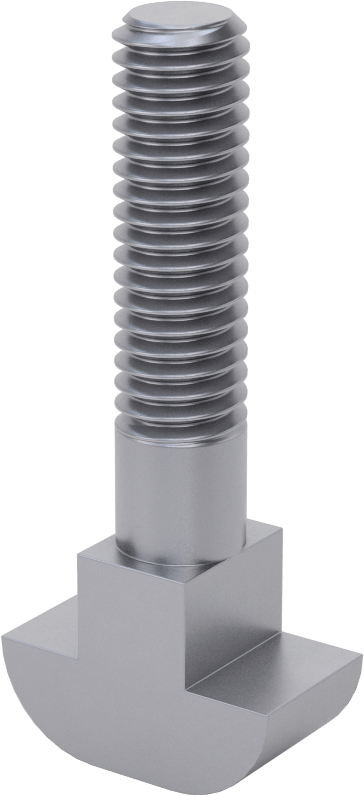

McMaster 91523A292 Steel Machined Neck T-Slot Bolt, M16×2 mm, 60 mm Long, for 16 mm Slot, Class 8.8, DIN 186
Original price
$79.64
-
Original price
$79.64
Original price
$79.64
$79.64
-
$79.64
Current price
$79.64
For quicker setups than a separate T-slot nut and stud, slide these bolts into T-slot tracks on machine tool tables.
Machined Neck — Flat surfaces on the neck fit securely in the T-slot so the bolt doesn't wobble.
| Neck Style | Machined |
| Material | Steel |
| For Slot Width | 16 mm |
| Threading | Partially Threaded |
| Length | 60 mm |
| Thread Length | 38 mm |
| Thread Size | M16 × 2 mm |
| Head | |
| Length | 30 mm |
| Width | 16 mm |
| Height | 10.5 mm |
| Minimum Tensile Strength | 120,000 psi |
| Fastener Strength Grade/Class | Class 8.8 |
| Specifications Met | DIN 186 |
| Fastener Head Type | T-Slot |
| Minimum Hardness | Rockwell C20 |
| System of Measurement | Metric |
| Thread Fit | Metric Class 6g |
| Country of Origin | Germany |
| DFARS Compliance | Not Specialty Metals Compliant |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 7318.15.2000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
