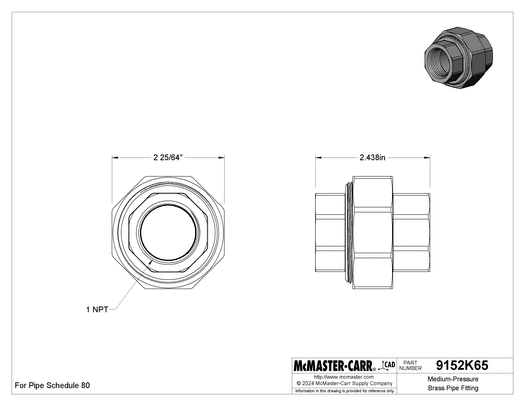

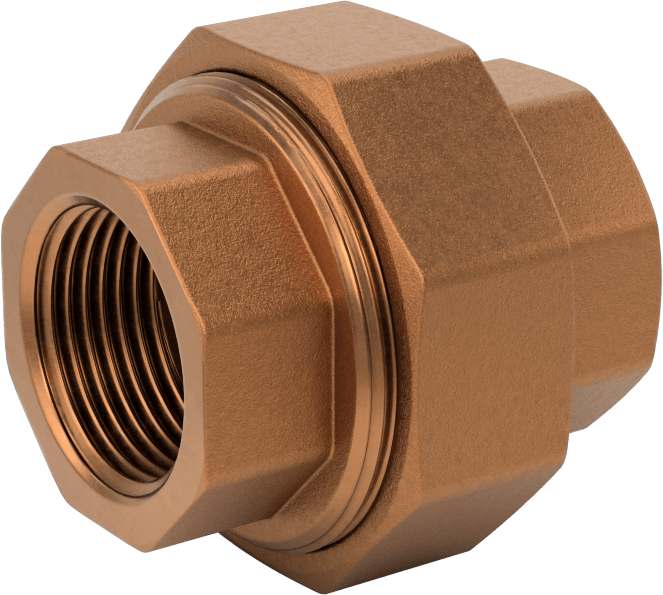

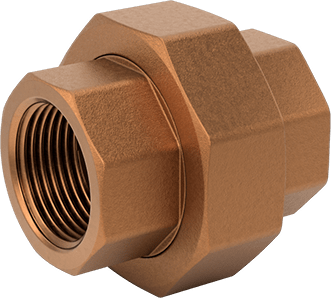

McMaster 9152K65 Medium-Pressure Brass Pipe Fitting Union Straight Connector, 1 NPT Female
Choose these fittings when you need better strength than our low-pressure brass and bronze pipe fittings. They offer good corrosion resistance.
Union connectors separate into three pieces so you can access your line without unthreading pipe connections.
|
For Use With
|
Air, Natural Gas, Oil, Water |
|
Shape
|
Straight |
|
Type
|
Connector, Union |
|
Body Shape
|
Hex |
|
Pressure Class
|
250 |
|
Connection Type
|
Pipe |
|
Connection Style
|
Threaded |
|
Connection
|
NPT Female |
|
Pipe Size
|
1 |
|
Length
|
2 7/16" |
|
Hex Width
|
2 25/64" |
|
Maximum Pressure
|
400 psi @ 72° F |
|
Material
|
Brass |
|
For Pipe
|
|
|
Schedule
|
80 |
|
Material
|
Brass |
|
Specifications Met
|
ASME B1.20.1, ASME B16.15, ASTM B584 |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
Thailand |
|
Schedule B
|
741220.0000 |
|
ECCN
|
EAR99 |
