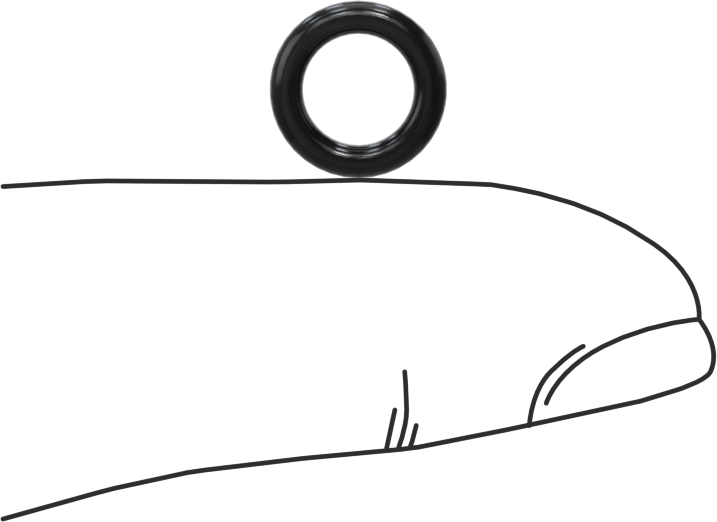

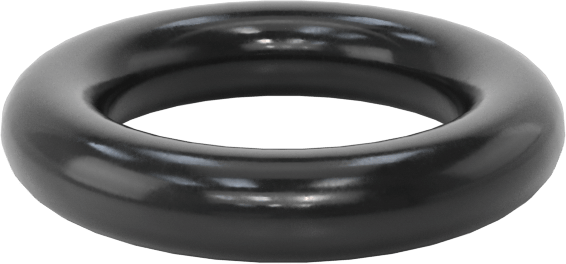

McMaster 9194N111 Chemical-Resistant Viton Fluoroelastomer O-Ring, High-Pressure, 1/16 Width, Dash No. 010, ID 1/4" × OD 3/8", Pack of 5
Original price
$52.18
-
Original price
$52.18
Original price
$52.18
$52.18
-
$52.18
Current price
$52.18
Made of our hardest Viton® fluoroelastomer, these O-rings can handle sudden pressure changes that would cause softer O-rings to crack or deform. They're often used in compressed air systems or oilfield equipment, such as blowout preventers and wellhead assemblies. These O-rings are tested to NORSOK M-710 standards for rapid gas decompression and extrusion resistance.
| Fractional | |
| Width | 1/16 |
| ID | 1/4 |
| OD | 3/8 |
| Width (Decimal) | 0.07" |
| Dash Number | 010 |
| ID (Decimal) | 0.239" |
| OD (Decimal) | 0.379" |
| Hardness | Durometer 95A (Hard) |
| Maximum Pressure | 2,100 psi |
| Specifications Met | API Std 6A, NACE TM0187, NORSOK M-710, SAE AS568 |
| Temperature Range | -15° F to 400° F |
| Color | Black |
| Cross Section Shape | Round |
| Material | Viton® Fluoroelastomer |
| For Use With | Diluted Salt Solutions Transmission Fluid Animal Oil Benzene Boric Acid Butyl Alcohol Calcium Hydroxide Citric Acid Ethylene Glycol Glycerin Grease Hydraulic Oil Isopropyl Alcohol Mineral Oil Motor Oil Petroleum Phosphoric Acid Sodium Bicarbonate (Baking Soda) Vegetable Oil Water |
| Performance | Chemical Resistant, High Pressure |
| System of Measurement | Inch |
| Country of Origin | Mexico |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| RoHS Compliance | Not Compliant |
| Schedule B Number | 4016.93.0000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
