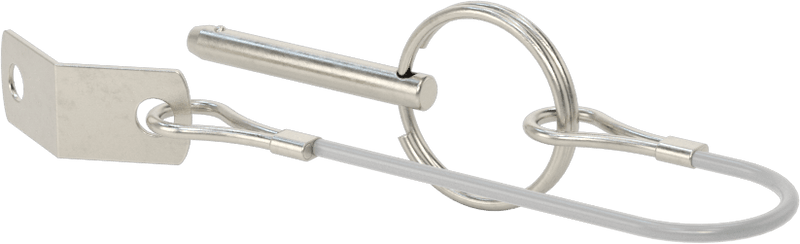

McMaster 94975A308 18-8 Stainless Steel Ring-Grip Quick-Release Pin, with Lanyard, 3/16" Diameter, 1-1/8" Usable Length
UPC: | Harmonization / Schedule B : 7318.29.0000
Country of Origin: United States | Shipping Weight: 0.05 lbs
The most common choice for tight spaces. The split ring folds down when these pins are installed, and you can pull with just one finger to remove. Keep them from getting lost by adding a lanyard, or choose a pin that includes one. You can also attach tags to the ring to identify components. Pins have a retaining ball to hold them in place.
Nylon-Coated Stainless Steel Lanyard—Keep pins from getting lost when removed by securing the end of the attached lanyard to equipment.
18-8 Stainless Steel—The choice for wet and outdoor environments, these pins resist rusting. They are strong enough to join most components but won't withstand stress and vibration as well as steel.
| Fastener Head Type | Ring |
| Shaft Type | Plain |
| Includes | Nylon-Coated Stainless Steel Lanyard |
| Material | 18-8 Stainless Steel |

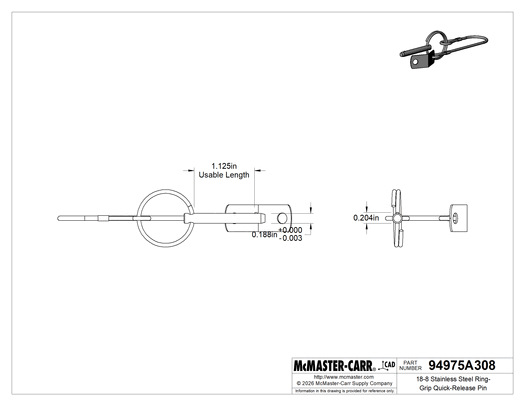

| Diameter | 3/16" |
| Diameter Tolerance | -0.003" to 0" |
| Usable Length | 1 1/8" |
| Diameter at Extended Ball Height | 0.204" |
| Single Shear Breaking Strength | 2,300 lbf |
| Minimum Hardness | Rockwell B85 |
| Ball Material | 316 Stainless Steel |
| End Shape | Chamfer |
| End Type | Spring-Loaded Ball |
| Handle Material | 316 Stainless Steel |
| Number of Retaining Balls | 1 |
| Passivation | Unpassivated |
| Performance | Corrosion Resistant |
| Pin Attachment Type | Tether |
| Pin Type | Quick Release |
| Spring Material | 316 Stainless Steel |
| System of Measurement | Inch |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals Compliant (252.225-7008) |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 731829.0000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
