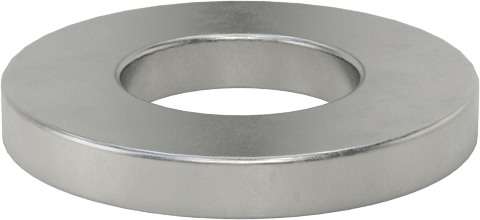

McMaster 96505A117 Steel Oversized Washer, for M10 Screw Size, 10.0 mm ID, 20.0 mm OD, Pack of 50
McMaster 96505A117 Steel Oversized Washer, for M10 Screw Size, 10.0 mm ID, 20.0 mm OD, Pack of 50
McMaster 96505A117 Steel Oversized Washer, for M10 Screw Size, 10.0 mm ID, 20.0 mm OD, Pack of 50
McMaster 96505A117 Steel Oversized Washer, for M10 Screw Size, 10.0 mm ID, 20.0 mm OD, Pack of 50
McMaster 96505A117 Steel Oversized Washer, for M10 Screw Size, 10.0 mm ID, 20.0 mm OD, Pack of 50
McMaster 96505A117 Steel Oversized Washer, for M10 Screw Size, 10.0 mm ID, 20.0 mm OD, Pack of 50
McMaster 96505A117 Steel Oversized Washer, for M10 Screw Size, 10.0 mm ID, 20.0 mm OD, Pack of 50
McMaster 96505A117 Steel Oversized Washer, for M10 Screw Size, 10.0 mm ID, 20.0 mm OD, Pack of 50
McMaster 96505A117 Steel Oversized Washer, for M10 Screw Size, 10.0 mm ID, 20.0 mm OD, Pack of 50
McMaster 96505A117 Steel Oversized Washer, for M10 Screw Size, 10.0 mm ID, 20.0 mm OD, Pack of 50
McMaster 96505A117 Steel Oversized Washer, for M10 Screw Size, 10.0 mm ID, 20.0 mm OD, Pack of 50
McMaster 96505A117 Steel Oversized Washer, for M10 Screw Size, 10.0 mm ID, 20.0 mm OD, Pack of 50
McMaster 96505A117 Steel Oversized Washer, for M10 Screw Size, 10.0 mm ID, 20.0 mm OD, Pack of 50
McMaster 96505A117 Steel Oversized Washer, for M10 Screw Size, 10.0 mm ID, 20.0 mm OD, Pack of 50

McMaster 96505A117 Steel Oversized Washer, for M10 Screw Size, 10.0 mm ID, 20.0 mm OD, Pack of 50

$56.09 - $56.09
$56.09
$56.09 - $56.09
$56.09

Cover oversized holes or use these washers as spacers and levelers. Compared to general purpose washers, these have a larger diameter or thickness.

Steel — Best for dry environments since moisture will cause these washers to rust.

Washer Designation Oversized
Material Steel

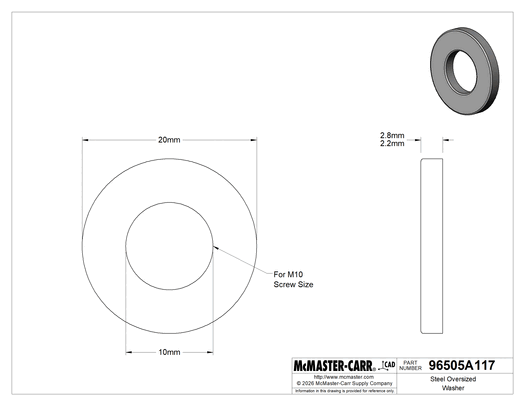

For Screw Size M10
ID 10.0 mm
OD 20.0 mm
Thickness 2.2 mm to 2.8 mm
Hardness Rockwell B76
Specifications Met DIN 1440
System of Measurement Metric
Washer Type Flat
Country of Origin China, Germany, India
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 731816.0000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying No
