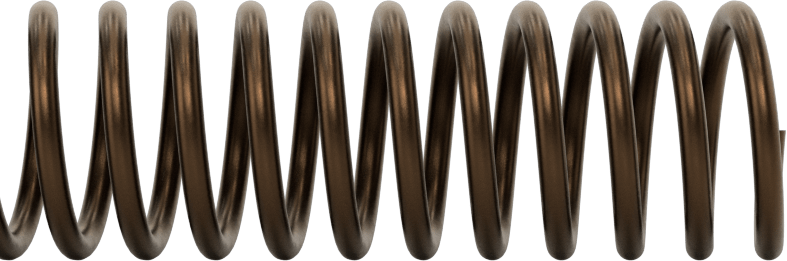

McMaster 9662K44 Compression Spring Stock, Spring Steel, 36" Long, 0.75" OD, 0.59" ID
Original price
$49.38
-
Original price
$49.38
Original price
$49.38
$49.38
-
$49.38
Current price
$49.38
Always be ready for the perfect fit. These springs are extra long to cut a custom length whenever you need it. Their open ends make cutting easier but prevent them from standing on their own. You'll need to install them in a hole or over a shaft, or grind the ends flat.
Spring Steel β Strong and resilient, but best suited for dry environments since moisture will cause these springs to rust.
Spring Rate β To determine the spring rate of a cut spring, first multiply the spring rate given by the spring's original length, then divide the result by the cut length (in inches).
| Material | Spring Steel |
| Length | 36" |
| OD | 0.75" |
| ID | 0.59" |
| Wire Diameter | 0.08" |
| Maximum Load | Not Rated |
| Spring Rate | 1.3 lbf/in |
| End Type | Open |
| Compression Spring Type | Straight |
| Maximum Temperature | 250Β° F |
| Performance | Cut-to-Length |
| Spring Type | Compression |
| System of Measurement | Inch |
| Temper Rating | Spring |
| Pack Size | 1 |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| Schedule B Number | 732020.5000 |
| USMCA Qualifying | Yes |
