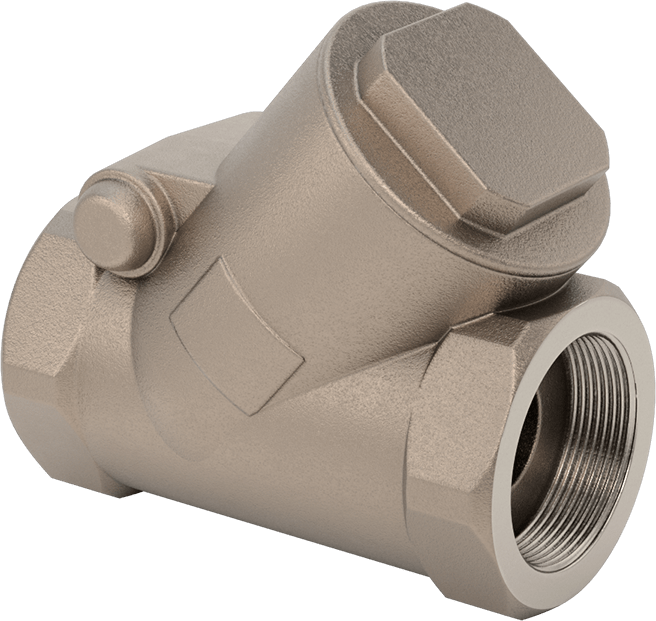

McMaster 9770K68 High-Flow Threaded Check Valve, Bronze Body, 2 NPT Female, 200 Pressure Class
Original price
$800.42
-
Original price
$800.42
Original price
$800.42
$800.42
-
$800.42
Current price
$800.42
To achieve the maximum possible flow, internal components are designed to reduce flow resistance. These valves open to allow flow in one direction and close when flow stops or reverses. A removable cap provides easy access to internal components for maintenance.
| Body Material | Bronze |
| Check Valve Type | Swing |
| Inlet / Outlet Connects to | Pipe |
| Fitting Connection | Threaded |
| Gender | Female |
| Thread Type | NPT |
| Pressure Class | 200 |
| Pipe Size | 2 |
| Flow Coefficient (Cv) | 92 |
| Maximum Pressure @ Temperature | 400 psi @ 150° F |
| Maximum Steam Pressure @ Temperature | 200 psi @ 388° F |
| Minimum Opening Pressure | 0.5 psi |
| Temperature Range | -20° F to 550° F |
| End-to-End Length | 5 7/8" |
| Mounting Position | Horizontal, Vertical |
| Features | Removable Cap |
| Specifications Met | MSS SP-80 |
| For Use With | Air, Argon, Helium, Krypton, Neon, Steam, Water, Xenon |
| Disc Material | Bronze |
| Seal Material | Bronze |
| Actuation | Pressure |
| Country of Origin | United States |
