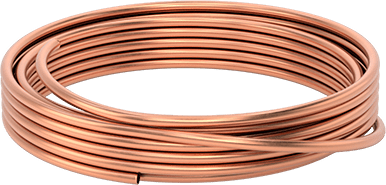

McMaster 9939K35 Copper Tubing with Coated Interior 5/8" OD, 0.035" Wall Thickness
Original price
$1,062.80
-
Original price
$1,062.80
Original price
$1,062.80
$1,062.80
-
$1,062.80
Current price
$1,062.80
The inside of this tubing is lined with 99% pure tin for added corrosion resistance. It is seamless, so it has a smooth interior for unrestricted flow.
|
For Use With
|
Natural Gas |
|
Material
|
Copper |
|
Interior Finish
|
Tin Coated |
|
OD
|
5/8" |
|
OD Tolerance
|
-0.002" to 0.002" |
|
Wall Thickness
|
0.035" |
|
ID
|
0.555" |
|
Maximum Pressure
|
610 psi @ 72° F |
|
Temperature Range
|
-100° to 400° F |
|
Fabrication
|
Seamless |
|
Flareable
|
Yes |
|
Form
|
Coil |
|
Bendable
|
Yes |
|
Bending Method
|
By Hand |
|
Temper Rating
|
Soft |
|
Compatible Tube Fittings
|
Compression |
|
Specifications Met
|
ASTM B75 |
|
Length
|
50 ft. |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
Thailand, United States, or Vietnam |
|
USMCA Qualifying
|
No |
|
Schedule B
|
741110.1000 |
|
ECCN
|
EAR99 |
