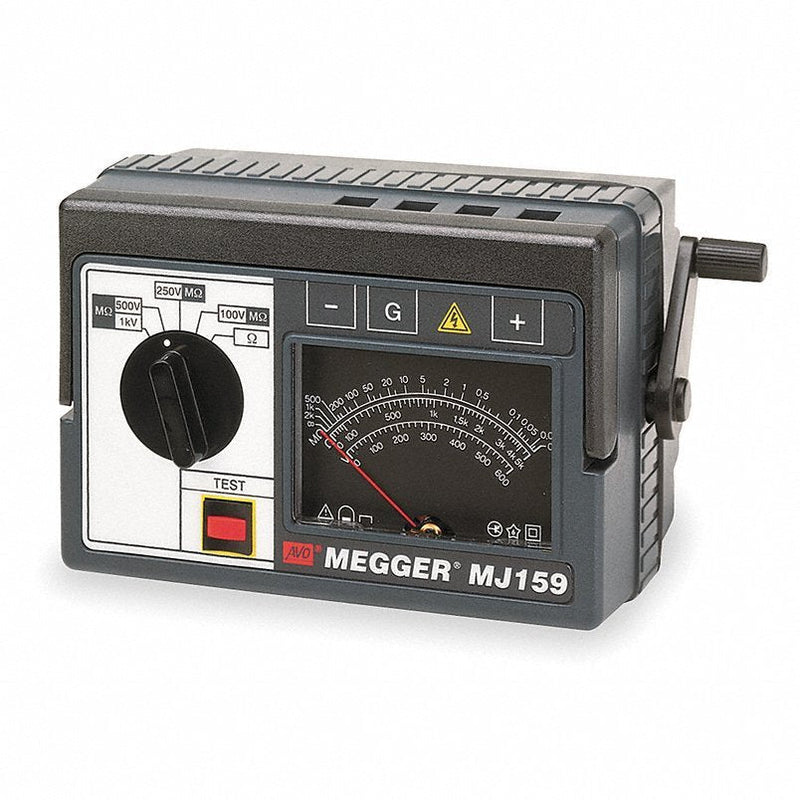

Megger MJ159 Hand Cranked Megohmmeter, 1000VDC
Original price
$1,891.15
-
Original price
$1,891.15
Original price
$1,891.15
$1,891.15
-
$1,891.15
Current price
$1,891.15
| Item | Megohmmeter |
| Output Test Voltage | 100/250/500/1000V DC |
| Insulation Resistance Range | 2000 megohm |
| Accuracy | +/-1.25% of Scale Length |
| Live Circuit Detection | 0 to 600V AC/V DC |
| Resistance Range | 5000 ohm |
| Display | Analog |
| Features | Impact Resistant Housing |
| Includes | Carrying Case and Test Leads |
| Auto Ranging | Yes |
| Product Type | Tester Only |
| Bluetooth Compatible | No |
| Features_Hold for TS | No |
| Display Screen Type | No Display |
| USB Data Download Included | No |
| Minimum Insulation Resistance | 0 ohm |
| Parameters Measured | Resistance |
| Minimum Operating Temperature | 14 Degrees F |
| Live Circuit Voltage | 20 to 600V AC |
| Maximum Insulation Resistance | 2 gigohm |
| Greater Than 30V Warning | No |
| CAT Safety Rating | CAT II 300V |
| Remote Test Probe Included | No |
| Insulation Limit Alarm | Yes |
| Timed Ramp Voltage Test | No |
| Power Source_Org Design Only | Hand Crank |
| Insulation Resistance Resolution | 0 to 2,000 megaohm |
| Minimum AC Voltage Measured | 20 V |
| Waterproof | No |
| Operating Voltage | 600V AC |
| Standards | IEC 61326-1 |
| Pass/Fail Selection Limits | No |
| PI/DAR Testing | No |
| Testing Functions | Insulation |
| Test Current | 2 mA |
| Safety Rating_Subhead | CAT II 300V |
| Maximum Operating Temperature | 122 Degrees F |
| Test Voltage | 1,000V DC, 100V DC, 250V DC, 500V DC |
| Maximum AC Voltage Measured | 600 V |
| Dustproof | No |
| Backlit Digital Display | No |
| Display Type | Analog |
| Resistance Accuracy | +/-1.25% of FSD |
| Megohmmeter Features | Standard |
| Capacitance Auto Discharge | Yes |
| Maximum Operating Temperature | 122 Degrees F |
| Package Quantity | 1 |
