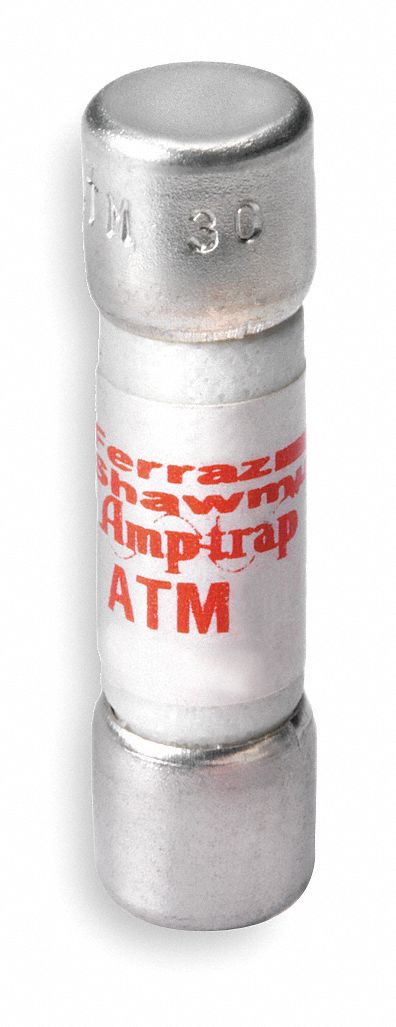

Mersen ATM15 Midget Fuse, 15 A, 600V AC/DC, Fast-Acting, Class Midget
Original price
$23.52
-
Original price
$23.52
Original price
$23.52
$23.52
-
$23.52
Current price
$23.52
Fuse, 15 A, 600 V AC, 600 V DC, Class Midget, ATM Series, Non-Indicating, Fast-Acting, Body Style Cylindrical, Non-Rejection, Interrupt Rating 100kA at 600V AC/DC, Fuse Size 1-1/2 in L x 13/32 in dia, Length 1 1/2 in, Diameter 13/32 in, Equivalent Brand and Series Bussmann KTK, Littelfuse KLK, Mersen ATM, Equivalent Series ATM, KLK, KTK, Compatible Fuse Block Series ATM, FEB, FEBN, Fex, GPM, HHH, HHL, HHM, MFB, Mini Dual Fuse Tap, USFM10, USM, Body Material Melamine, Single Element
| Series | ATM |
|---|---|
| Speed | Fast-Acting |
| Amps | 15A |
| AC Voltage Rating | 600V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100kA at 600V AC/DC |
| Body Style | Cylindrical |
| Body Material | Melamine |
| Equivalent Brand and Series | Bussmann KTK, Littelfuse KLK, Mersen ATM |
| Fits Fuse Block Style | Non-Rejection |
| Compatible Fuse Block Series | ATM, FEB, FEBN, Fex, GPM, HHH, HHL, HHM, MFB, Mini Dual Fuse Tap, USFM10, USM |
| DC Voltage Rating | 600V DC |
| Rejection / Nonrejection | Nonrejection |
| Class | Midget |
| Mounting | Clip |
| Standards | CSA, UL |
| Weight | 0.012 lb |
| Element | Single |
| Equivalent Series | ATM, KLK, KTK |
| Fuse Holder Code | D |
| AC Max I.R./Breaking Capacity: I1 | 100 kA |
| APPLICATIONS | Supplemental protection of of circuits up to 600VAC and 600VDC with 100kA I.R. |
| In Line Fuseholder | D |
| APPROVALS & STANDARDS | UL listed to standard 248-14 (1/10 to 30A) File E33925; DC Listed to UL Standard 248-14 (1/10 to 30A); CSA Certified to Standard C22.2 No. 248.14 (1/10 to 30A) |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection Material | Tin-Plated Copper |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Interrupt Rating - DC | 100 kA |
| Interrupt Rating - AC | 100 kA |
| Current | 15 A |
| Country of Origin | Mexico |
