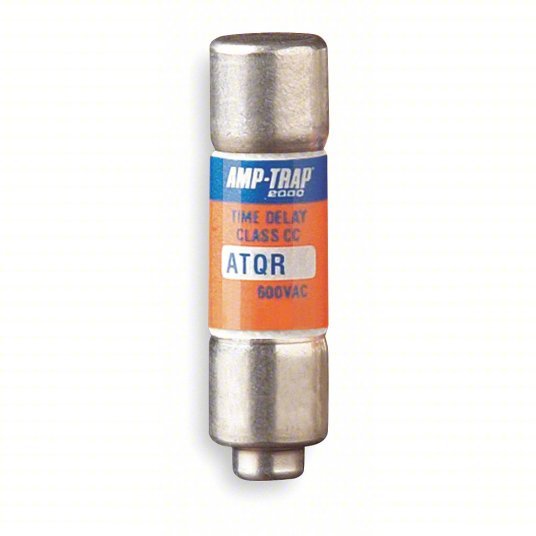

Mersen ATQR5 UL Class CC Fuse Time Delay, 5 A, ATQR, Cylindrical Body, Nonindicating, 300V DC

UL Class CC Fuse, 5 A, 600V AC, 300V DC, Class CC, ATQR Series, Nonindicating, Time Delay, Body Style Cylindrical, Rejection, Interrupt Rating 100kA at 300V DC, 200kA at 600V AC, Fuse Size 1-1/2 in L x 13/32 in dia, Length 1 1/2 in, Diameter 13/32 in, Equivalent Brand and Series Bussmann FNQ-R, Littelfuse KLDR, Mersen ATQR, Equivalent Series ATQR, FNQ-R, KLDR, Compatible Fuse Block Series USCC, USFMCC, Body Material Melamine, Dual Element, Standards UL/CSA

Class	CC
Series	ATQR
Speed	Time-Delay
Amps	5A
AC Voltage Rating	600V AC
DC Voltage Rating	300V DC
Visual Indication	Non-Indicating
Interrupt Rating	100kA at 300V DC, 200kA at 600V AC
Body Style	Cylindrical
Body Material	Melamine
Equivalent Brand and Series	Bussmann FNQ-R, Littelfuse KLDR, Mersen ATQR
Equivalent Series	ATQR, FNQ-R, KLDR
Fits Fuse Block Style	Rejection
Compatible Fuse Block Series	USCC, USFMCC
UPC	782001906580
Rejection / Nonrejection	Rejection
Standards	UL/CSA
Weight	0.02 lb
Mounting	Clip
Element	Dual
Frequency	50/60 Hz
Green Environmental Attribute	RoHS 2011/65/EU Compliant
AC Max I.R./Breaking Capacity: I1	200 kA
Fuse Holder Code	D/W
Connection/Terminal Material	Tin-Plated Copper
Connection Type	Ferrule
Fuse Speed	Time Delay
Short Description	Fuse Amp-Trap 2000® 600V 5A Time-Delay Class CC ATQR Series
APPROVALS & STANDARDS	UL listed to standard 248-4 File E2137; DC listed to UL standard 248; CSA certified to standard C22.2 No. 248.4
In Line Fuseholder	D/W
