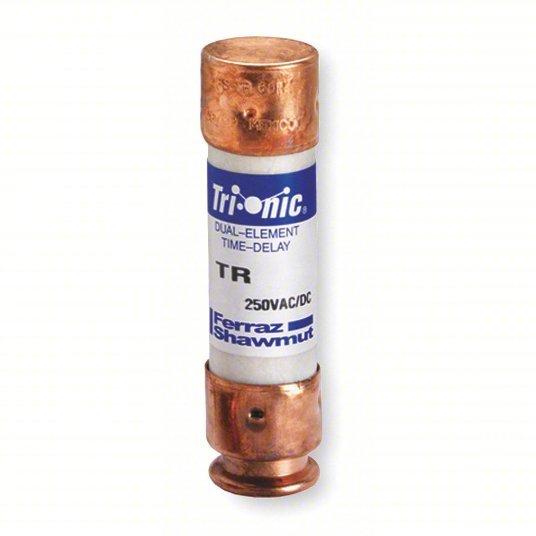

Mersen TR60R Fuse 60 A, 250V AC, 3 in L x 13/16 in dia Fuse Size, Cylindrical Body, TR-R
Original price
$12.09
-
Original price
$12.09
Original price
$12.09
$12.09
-
$12.09
Current price
$12.09
Fuse, 60 A, 250V AC, 250V DC, Class RK5, TR-R Series, Nonindicating, Time Delay, Body Style Cylindrical, Fits Fuse Block Style Rejection, Interrupt Rating 200kA at 250V AC, 20kA at 250V DC, Fuse Size 3 in L x 13/16 in dia, Length 3 in, Diameter 13/16 in, Equivalent Brand and Series Bussmann FRN-R, Edison ECNR, Littelfuse FLNR, Mersen TR-R, Equivalent Series ECNR, FLNR, FRN-R, TR-R, Compatible Fuse Block Series 2HKRFB, Body Material Polyester, Dual Element, Standards CSA, UL
| Item | Fuse |
| Amps | 60A |
| Speed | Time Delay |
| Series | TR-R |
| AC Voltage Rating | 250V AC |
| DC Voltage Rating | 250V DC |
| Interrupt Rating | 200kA at 250V AC, 20kA at 250V DC |
| Class | RK5 |
| Visual Indication | Nonindicating |
| Body Style | Cylindrical |
| Fits Fuse Block Style | Rejection |
| Body Material | Polyester |
| Element | Dual |
| Standards | CSA, UL |
| Equivalent Brand and Series | Bussmann FRN-R, Edison ECNR, Littelfuse FLNR, Mersen TR-R |
| Equivalent Series | ECNR, FLNR, FRN-R, TR-R |
| Compatible Fuse Block Series | 2HKRFB |
| Fuse Holder Code | K |
| Fuse Speed | Time Delay |
| Fuse Amps | 60A |
| Rejection / Nonrejection | Rejection |
| Fuse Voltage Rating | 250VAC/DC |
| Functionally Equal To | Bussmann FRN-R, Littelfuse FLNR |
| Fuse Interrupt Rating | 200kA at 250VAC, 20kA at 250VDC |
| Indicating / Nonindicating | Nonindicating |
| Weight | 0.135 lb |
| Mounting | Clip |
| Connection Type | Ferrule |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Speed/Characteristic | Time Delay |
| Ampere Rating | 60 A |
| Rated voltage AC UL | 250 V |
| APPLICATIONS | Motor circuits; Mains; Feeders; Branch circuits; Transformers; Service entrance equipment; General-purpose equipment |
| Connection/Terminal Type | Ferrule |
| Frequency | 50/60 Hz |
| Rated voltage DC UL | 250 V |
| APPROVALS & STANDARDS | UL listed to standard 248-12 File E2137; CSA certified to standard C22.2 no. 248.12; DC listed to UL standard 248 TRS only |
| Fuse Class | Class RK5 |
| Body/Insulating Material | PolyTube |
| Connection/Terminal Material | Copper |
| Item Description (ERP) | 250V 60A 3x13/16 RK5 TD F |
| Short Description | Fuse Tri-Onic® 250V 60A Time-Delay Class RK5 TR Series |
