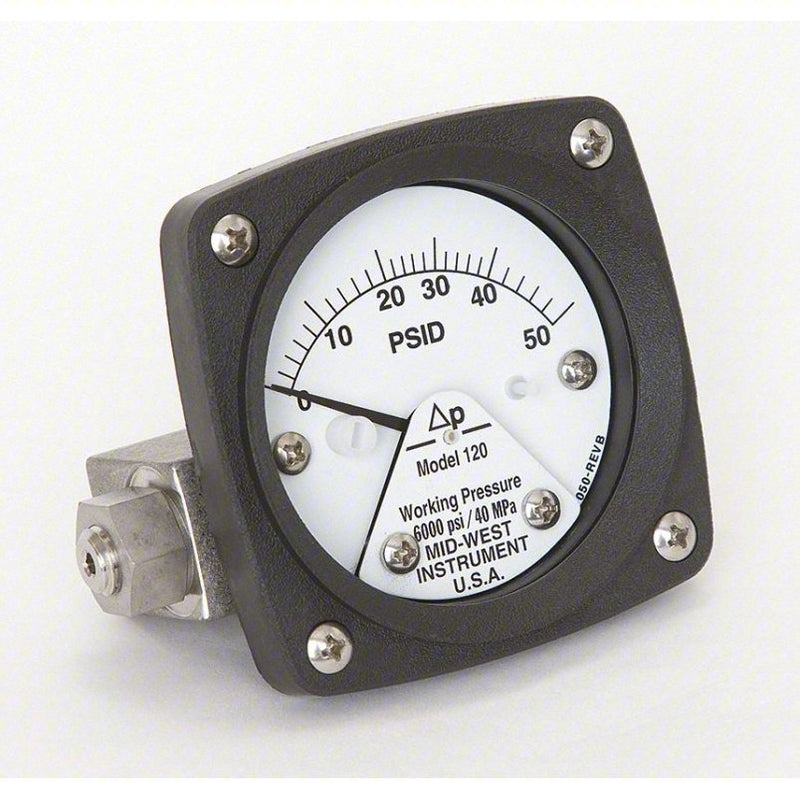

Midwest Instrument 120-SA-00-OO-50P Differential Pressure Gauge 0 to 50 psid, Back, 1/4 in NPT Female, 120, Piston
Original price
$506.59
-
Original price
$506.59
Original price
$506.59
$506.59
-
$506.59
Current price
$506.59
Differential Pressure Gauge, Pressure Scale Type, Pressure Range 0 to 50 PSID, Pressure Range Minor Div 2.0 PSID, Rated Total Pressure 6000 PSIG, Full Scale Accuracy +/-3-2-3 %, Connection Size NPT 1/4 In FNPT In, Dial Size 2-1/2 In In, 316 Stainless Steel Body Material, Plastic Dial Material, Stainless Steel Piston Material, Includes Instructions, Warranty Length 5 Year, Ambient Operating Range -40 to 200 F
| Basic Gauge Case Material | Metal |
| Basic Gauge Wetted Parts | Stainless Steel / Buna-N |
| Differential Gauge Connection Type | FNPT |
| Gauge Connection Location | Back |
| Differential Pressure Range Units | psi |
| Differential Pressure Range Value | 0 to 50 |
| Gauge Accuracy | +/-3-2-3% |
| Gauge Primary Range Smallest Graduation | 2 |
| Rated Total Pressure | 6,000 psi |
| Standards | CSA, UL |
| Dial Material | Engineered Plastic |
| Body Material | 316 Stainless Steel |
| Includes | Instructions |
| Differential Pressure Range | 0 to 50 psi |
| Item | Differential Pressure Gauge |
| Piston Material | Stainless Steel |
| Gauge Operating Temp. Range | -40 Degrees to 200 Degrees F |
| Scale Type | Pressure |
| Seal Material | Buna-N |
| Series | 120 |
| Maximum Working Static Pressure | 6,000 psig |
| Panel-Mountable | Yes |
| IP/NEMA Rating | IP65, NEMA 4X |
| Adjustable Set Points | Yes |
| Process Connection Type | NPT |
| Removable Bezel | No |
| Accuracy | +/-3-2-3% |
| Process Connection Location | Back |
| Repeatability | 1% |
| Lens Material | Acrylic |
| Blowout Safety Back | No |
| Movement Material | Stainless Steel |
| Gauge Case Material | Plastic |
| Housing Material | 316L Stainless Steel |
| Pressure Gauge Type | Differential Pressure Gauge |
| Includes Mounting Hardware | No |
| Hazardous Location Rating | Not Rated |
| Bezel Gasket Material | Buna-N |
| Process Temperature Range | -40 Degrees to 200 Degrees F |
| Dial Color | White |
| Process Connection Gender | Female |
| Includes Vent Plug | No |
| Case Construction | Glass Reinforced |
| Pressure Range | 0 to 50 psid |
| Panel Mount Characteristics | 3 L Dia Holes on E Dia Bolt Circle |
| Ambient Operating Temperature Range | -40 Degrees to 200 Degrees F |
| Non-Sparking | No |
| Application | Compressors, Filtration Monitoring, Pressure Detection, Hydraulics, Flow Measurement, Pumps, Refrigeration, Valves |
| Accuracy Grade | ASME B40.1 Grade B |
| Sensor Material | Buna-N |
| Case Shape | Round |
| Includes Calibration Certificate | No |
| Primary Scale Minor Graduations | 2 |
| Sensor Type | Piston |
| Process Media Temperature - Maximum | 200 Degrees F |
| Pressure Scale Minor Graduations | 2 |
| IP Rating | IP65 |
| Pressure Measurement - Minimum | 0 psid |
| Number of Switches | 0 |
| Operating Temperature - Minimum | -40 Degrees F |
| NEMA Enclosure Rating | 4X |
| Pressure Measurement - Maximum | 50 psid |
| Process Media Temperature - Minimum | -40 Degrees F |
| Operating Temperature - Maximum | 200 Degrees F |
