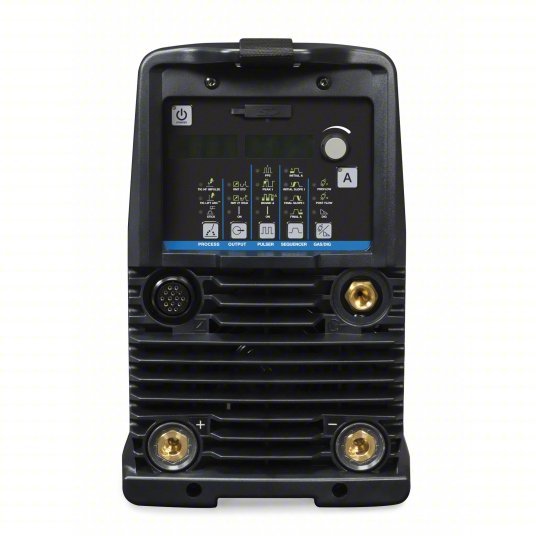

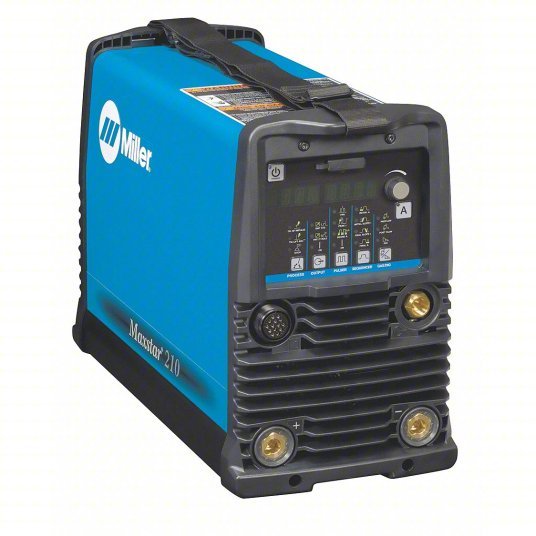

Miller 907684 TIG Welder Maxstar 210 DX, DC, Power Source Only
Original price
$6,785.59
-
Original price
$6,785.59
Original price
$6,785.59
$6,785.59
-
$6,785.59
Current price
$6,785.59
Miller® Maxstar® DX 210 110-480 V is the industry standard. Miller® pioneered the Maxstar-type market, now they've perfected it. The Maxstar® 210 Series provides a solution for a variety of needs, from simple to fully automated.
| Welder Industrial Class | Medium |
| Welding Processes | Stick Welding (SMAW), TIG Welding (GTAW) |
| Input Voltage | 110/115/120V AC, 208V AC, 220/230/240V AC, 380/400V AC, 460/480V AC |
| Rated Output | 210A @ 18V |
| Welder Max. Output Amps | 210 |
| Welder Min. Output Amps | 1 |
| Welder Duty Cycle | 60 % |
| Series | Maxstar 210 DX |
| Welded Material | Mild Steel, Stainless Steel |
| Power Source Weight | 38 lb |
| Input (Amps) | 26/6 |
| Application | Aerospace, Dairy, Food and Beverage Industry, Petro Chemical, Precision Fabrication, Shipboard |
| Polarity | DC |
| Welder Input Hz | 50/60 |
| Welder Input Phase | 1 or 3 |
| Features | Wireless Remote Compatible |
| Includes | Power Source Only |
| Phase | Single-/Three-Phase |
| Standards | CE, CSA, ISO |
| Open Circuit Voltage | 80V DC |
| Max. Input Current | 15 A @ 208V (Three-Phase), 26 A @ 208V (Single-Phase) |
| TIG Welding Output @ Duty Cycle | 210 A @ 18.4 V, 60%, 125 A @ 15 V, 60% |
| Power Cord Included | Yes |
| Welding Mode | CC |
| Stick Welding Output @ Duty Cycle | 160 A @ 26.4 V, 60%, 90 A @ 23.6 V, 60% |
| Input Frequency | 50/60 Hz |
| Stick Welding Maximum Output Current | 210 A |
| Pulse Frequency | 0.1 to 500 pulses/second |
| Remote Control | Remote Control Not Included |
| For Material Type | Specialty Metals, Stainless Steel, Steel |
| TIG Welding Minimum Output Current | 1 A |
| Weight | 38 lb |
| TIG Arc Start Feature | High Frequency Start, Lift Arc Start |
| Amperage Range | 1 to 210 A |
| TIG Welding Maximum Output Current | 210 A |
| Remote Connection Type | 14-Pin (Miller) |
| Plug Type | Bare Leads |
| Stick Welding Minimum Output Current | 5 A |
| Color | Blue |
| Model | 907684 |
