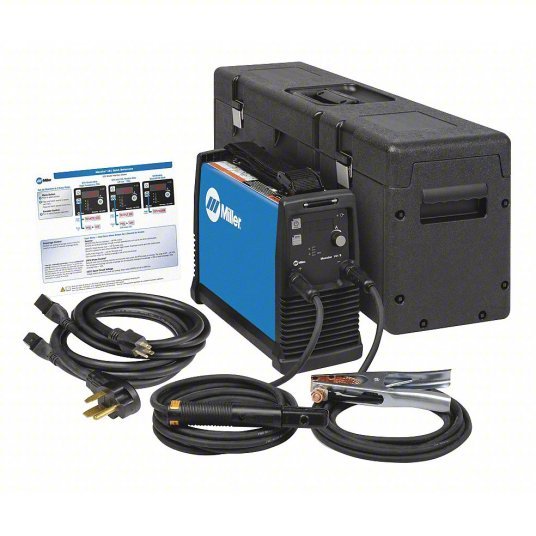

Miller 907709001 Stick Welder Maxstar 161 S, DC, Dinse-Style, SMAW, Stick Pack w/Case

Stick Welder, Electrode Cable Length 13 ft, For Material Type Stainless Steel, Steel, Input Frequency 50/60 Hz, Input Voltage 110/115/120V AC, 220/230/240V AC, Phase Single-Phase, Polarity DC, Model 907709001, Stick Welding Maximum Output Current 160 A, Cable Connection Type Dinse-Style, Remote Connection Type 6-Pin

Series	Maxstar 161 S
Standards	CSA
Includes	10 ft. Work Cable with Clamp and 25 mm Dinse-Style Connector, 13 ft. Electrode Cable with Holder and 25 mm Dinse-style Connector, Protective X-CASE(TM)
Input Voltage	110/115/120V AC, 220/230/240V AC
Features	Auto-Line Power Management Technology, Fan-On-Demand, Hot Start, Single Amperage Range, Thermal Overload Protection
Phase	Single-Phase
Welding Processes	Stick Welding (SMAW)
Duty Cycle	100%, 160A @ 26.4V, 20% / 110A @ 24.4V
Welding Range (Amps DC)	20-160
Amps DC	160
Rated Output	DC: 110A/24.4V/30%
Welding Amp Range Low	20 to 90
Output Range (Amps)	20 to 160
Welding Amp Range High	20 to 160
Hz	50/60
OCV	400 VDC
Output Amps @100% Duty Cycle	110 A
Application	Build Up Welding, Farm, For Home, Light Fabrication, Repair and Maintenance, Shop
Output Amps @20% Duty Cycle	160A
Polarity	DC
Input (Amps)	20
Plug Type	5-15P
Stick Welding Minimum Output Current	20 A
Open Circuit Voltage	48 V DC
Stick Welding Output @ Duty Cycle	110 A @ 24.4 V @ 100% (240 V), 160 A @ 26.4 V, 60% (240 V), 60 A @ 22.4 V, 100% (120 V), 90 A @ 23.6 V, 30 % (120 V)
Remote Connection Type	6-Pin (Miller)
Input Frequency	50/60 Hz
Stick Welding Maximum Output Current	160 A
For Material Type	Stainless Steel, Steel
Welding Mode	CC
Weight	13 lb
Cable Connection Type	Dinse-Style
Effective Input Current	14.31 A @ 240V AC (Single-Phase), 14.68 A @ 120V AC (Single-Phase), 22.55 A @ 240V AC (Single-Phase), 23.16 A @ 120V AC (Single-Phase)
Color	Blue
