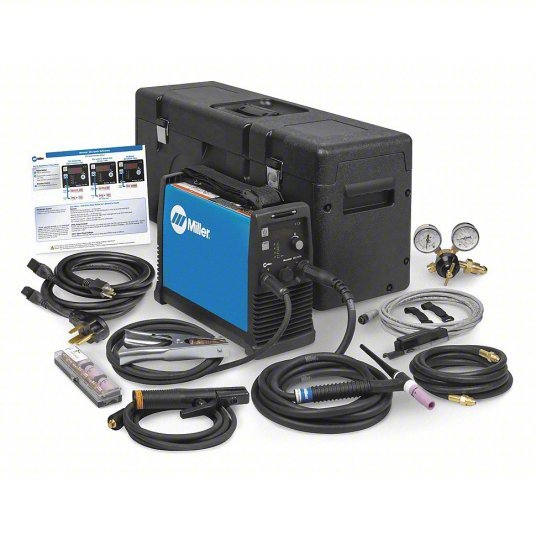

Miller 907711001 TIG Welder Maxstar 161 STH, DC, Stick/TIG Pack w/Fingertip Control
Original price
$4,714.83
-
Original price
$4,714.83
Original price
$4,714.83
$4,714.83
-
$4,714.83
Current price
$4,714.83
TIG Welder, For Material Type Stainless Steel, Steel, For Maximum Material Thickness 3/16 in (Steel), For Minimum Material Thickness 0.020 in (Steel), Input Frequency 50/60 Hz, Max. Input Current 23.16 A @ 120V (Single-Phase), Phase Single-Phase, Polarity DC, Series Maxstar 161 STH, Stick Welding Maximum Output Current 160 A, Stick Welding Minimum Output Current 20 A
| Welding Processes | Stick Welding (SMAW), TIG Welding (GTAW) |
| Mild Steel - Material Thickness | 0.020 in to 3/16 in |
| Aluminum - Material Thickness | Thin Gauge to 3/16 in |
| Input Voltage | 110/115/120V AC, 220/230/240V AC |
| Rated Output | 130A @ 15.2V |
| Welder Max. Output Amps | 160 |
| Welder Min. Output Amps | 5 |
| Welder Duty Cycle | 60 % |
| Series | Maxstar 161 STH |
| Application | Automotive/Motorsports, General Fabrication, Home/Shop, Vocational Schools |
| Welded Material | Mild Steel, Stainless Steel |
| Welder Input Hz | 50/60 |
| Includes | 10 ft (3 m) work clamp with 25 mm Dinse-style connector, 12.5 ft (3.8 m) Weldcraft A-150 TIG torch with 25 mm. Dinse-style connector, 13 ft (4 m) stick electrode holder with 25 mm Dinse-style connector, AK2C accessory kit, Protective Miller(R) X-Case (301429), RCCS-6M remote fingertip control (195184), Regulator/flow gauge and gas hose |
| Welder Input Phase | 1 |
| Polarity | DC |
| Input (Amps) | 15 |
| Features | Auto Line Power Management Technology, Fan-On-Demand(TM), Hot Start(TM), Single Amperage Range, Thermal Overload Protection |
| Power Source Weight | 13 lb |
| Phase | Single-Phase |
| Standards | CSA, ISO |
| TIG Welding Minimum Output Current | 5 A |
| For Material Type | Stainless Steel, Steel |
| Pulse Frequency | 0 to 150 pulses/second |
| For Minimum Material Thickness | 0.020 in (Steel) |
| TIG Welding Maximum Output Current | 160 A |
| TIG Arc Start Feature | High Frequency Start, Lift Arc Start |
| For Maximum Material Thickness | 3/16 in (Steel) |
| Stick Welding Output @ Duty Cycle | 110 A @ 24.4 VDC, 100%, 160 A @ 26.4 VDC, 20%, 60 A @ 22.4 VDC, 100%, 90 A @ 23.6 VDC, 30% |
| Input Frequency | 50/60 Hz |
| Amperage Range | 5 to 160 A |
| Max. Input Current | 23.16 A @ 120V (Single-Phase) |
| Weight | 13 lb |
| Remote Connection Type | 6-Pin (Miller) |
| Color | Blue |
| Open Circuit Voltage | 48V DC |
| Plug Type | 5-15P |
| Stick Welding Maximum Output Current | 160 A |
| Welding Mode | CC |
| Power Cord Included | Yes |
| TIG Welding Output @ Duty Cycle | 110 A @ 14.4 VDC, 100%, 130 A @ 15.2 VDC, 30%, 160 A @ 16.4 VDC, 20%, 90 A @ 13.6 VDC, 100% |
| Remote Control | Fingertip Control Included |
| Stick Welding Minimum Output Current | 20 A |
| Model | 907711001 |
| Max. Amperage (TIG) | 160 A |
