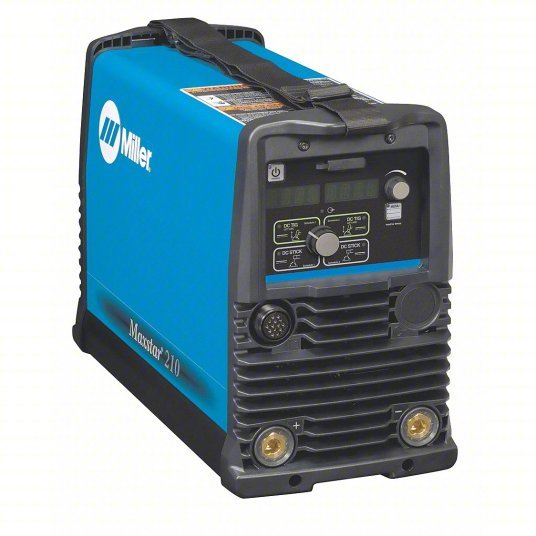

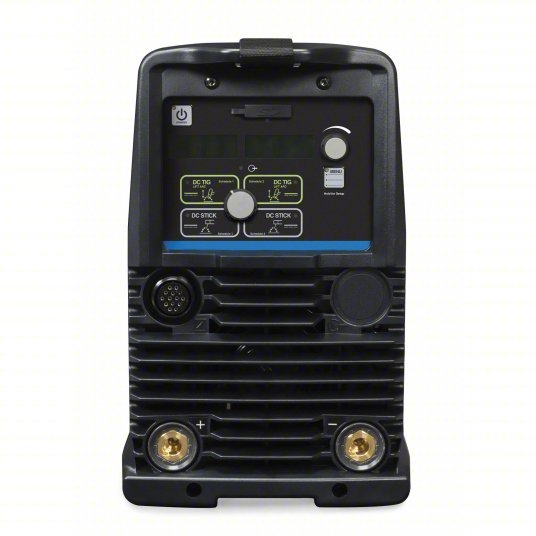

Miller Electric 907682 Stick Welder Maxstar 210 STR, DC, Dinse-Style, SMAW, GTAW, Power Source Only

Stick Welder, For Material Type Stainless Steel, Steel, Input Frequency 50/60 Hz, Input Voltage 110/115/120V AC, 208V AC, 220/230/240V AC, 380/400V AC, 460/480V AC, Phase Single-/Three-Phase, Polarity DC, Model 907682, Stick Welding Maximum Output Current 210 A, TIG Welding Maximum Output Current 210 A, Cable Connection Type Dinse-Style, Remote Connection Type 14-Pin (Miller), Stick Welding Output @ Duty Cycle 160 A @ 26.4 V, 60 Percent (3-Phase), 90 A @ 23.6 V, 60 Percent (1-Phase)

Welding Processes	Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage	110/115/120V AC, 208V AC, 220/230/240V AC, 380/400V AC, 460/480V AC
Rated Output	210A @ 18V
Welder Max. Output Amps	210
Welder Min. Output Amps	1
Welder Duty Cycle	60 %
Series	Maxstar 210 STR
Welded Material	Mild Steel, Stainless Steel
Features	Digital Meters, Dual Memory Selections, Fan-On-Demand, Hot Start, Operator Friendly Interface, Pro-Set
Welder Input Hz	50/60
Includes	Power Source Only
Polarity	DC
Application	Aerospace, Dairy, Food and Beverage Industry, Petro Chemical, Precision Fabrication, Shipboard
Input (Amps)	26/6
Welder Input Phase	1 or 3
Power Source Weight	38 lb
Standards	CSA
Phase	Single-/Three-Phase
TIG Arc Start Feature	Lift Arc Start
TIG Welding Minimum Output Current	5 A
TIG Welding Maximum Output Current	210 A
Input Frequency	50/60 Hz
For Material Type	Stainless Steel, Steel
Plug Type	Bare Leads
Stick Welding Output @ Duty Cycle	160 A @ 26.4 V, 60% (3-Phase), 90 A @ 23.6 V, 60% (1-Phase)
Remote Connection Type	14-Pin (Miller)
TIG Welding Output @ Duty Cycle	125 A @ 15 V, 60% (1-Phase), 210 A @ 18 V, 60% (3-Phase)
Color	Blue
Stick Welding Maximum Output Current	210 A
Weight	38 lb
Welding Mode	CC
Open Circuit Voltage	80 V DC
Cable Connection Type	Dinse-Style
Stick Welding Minimum Output Current	5 A
Effective Input Current	10 A @ 480V AC (Single-Phase), 11 A @ 480V AC (Single-Phase), 12 A @ 240V AC (Three-Phase), 12 A @ 400V AC (Single-Phase), 13 A @ 240V AC (Three-Phase), 13 A @ 400V AC (Single-Phase), 14 A @ 208V AC (Three-Phase), 15 A @ 208V AC (Three-Phase), 20 A @ 240V AC (Single-Phase), 22 A @ 120V AC (Single-Phase), 22 A @ 240V AC (Single-Phase), 23 A @ 120V AC (Single-Phase), 24 A @ 208V AC (Single-Phase), 26 A @ 208V AC (Single-Phase), 6 A @ 480V AC (Three-Phase), 7 A @ 400V AC (Three-Phase), 8 A @ 400V AC (Three-Phase)
